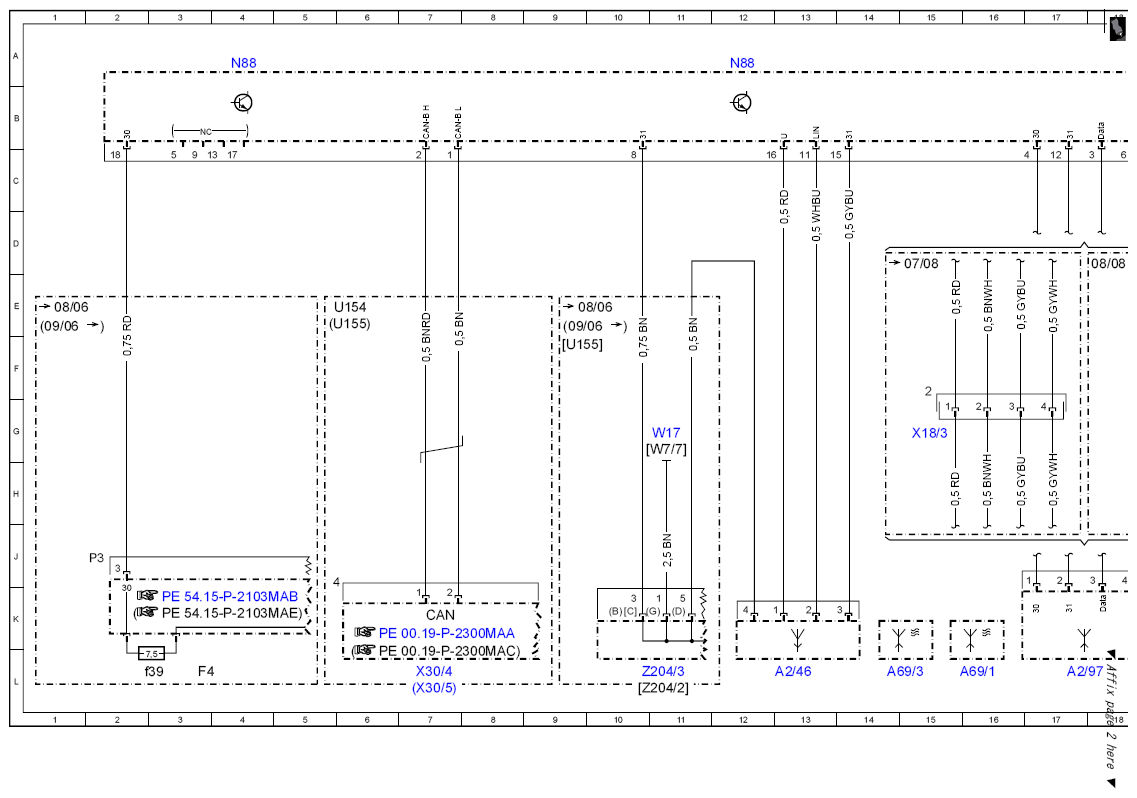

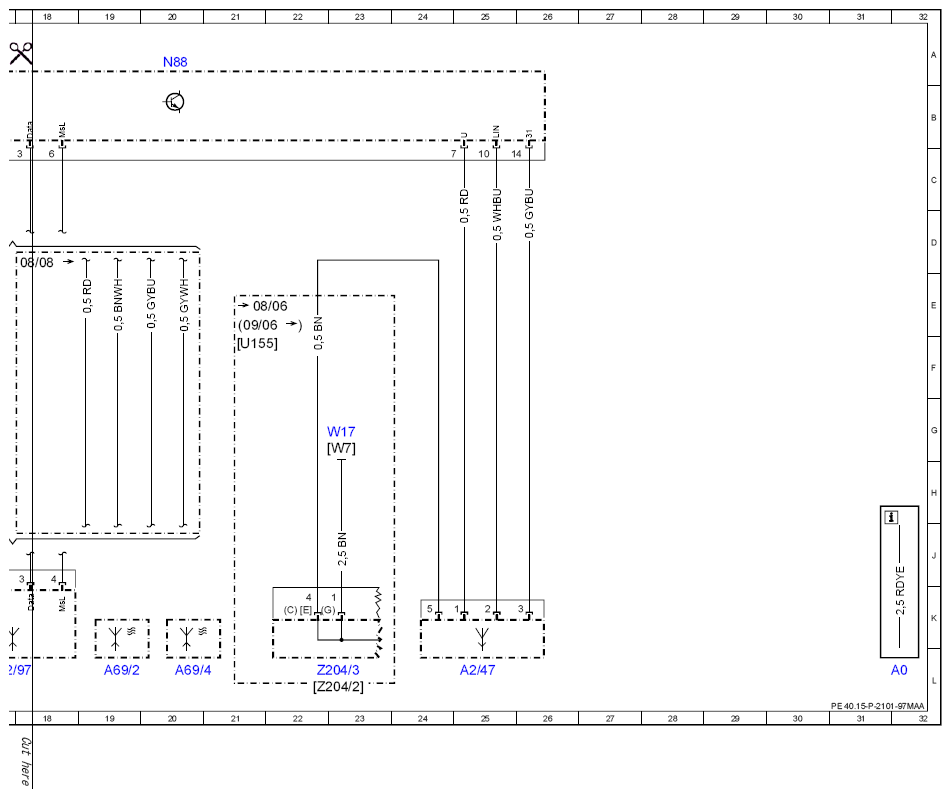

| A0 |
Color code key |
32L |
| A2/46 |
Left rear TPM [RDK] wheel antenna |
13L |
| A2/47 |
Right rear TPM [RDK] wheel antenna |
25L |
| A2/97 |
Central TPM [RDK] antenna |
17L |
| A69/1 |
Left front TPM [RDK] wheel sensor |
16L |
| A69/2 |
Right front TPM [RDK] wheel sensor |
19L |
| A69/3 |
Left rear TPM [RDK] wheel sensor |
14L |
| A69/4 |
Right rear TPM [RDK] wheel sensor |
20L |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f39 |
Fuse 39 |
3L |
| N88 |
TPM [RDK] control unit |
4A |
| N88 |
TPM [RDK] control unit |
12A |
| N88 |
TPM [RDK] control unit |
20A |
| U154 |
Valid for 164.1 |
5E |
| U155 |
Valid for 164.8 |
5E |
| U155 |
Valid for 164.8 |
5E |
| U155 |
Valid for 164.8 |
9F |
| W17 |
Ground (right rear seat) |
11G |
| W17 |
Ground (right rear seat) |
23G |
| W7 |
Ground (right wheelhouse in luggage compartment) |
23H |
| W7/7 |
Ground (right spare tire well) |
11G |
| X18/3 |
Interior/fuel tank connector |
15G |
| X30/4 |
Right voltage distributor (CAN) connector |
7L |
| X30/5 |
Left voltage distributor (CAN) connector |
7L |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
11L |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
23L |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
11L |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
22L |
