Function diagram of electrical system of tire pressure monitor - PE40.15-U-2050-99MAA

Code: Designation: Position:
A1 Instrument cluster 9 H
A2/97 Central TPM [RDK] antenna 3 C
A69/1 Left front TPM [RDK] wheel sensor 1 A
A69/2 Right front TPM [RDK] wheel sensor 1 A
A69/3 Left rear TPM [RDK] wheel sensor 1 B
A69/4 Right rear TPM [RDK] wheel sensor 1 B
B14 Ambient temperature display temperature sensor 5 K
G2 Generator 12 B
L6/1 Left front wheel speed sensor 21 B
L6/2 Right front wheel speed sensor 21 B
L6/3 Left rear wheel speed sensor 21 C
L6/4 Right rear wheel speed sensor 21 C
N10 Front SAM control unit 11 B
N22 AAC pushbutton control module 5 G
N22/7 Comfort AAC pushbutton control module 5 H
N3/9 CDI control module 16 K
N47-5 ESP control module 17 B
N49 Steering angle sensor 18 D
N73 DI control module 9 C
N80 Steering column module 17 E
N88 TPM control module 6 C
N93 Central gateway control module 11 H
U127 Valid for engine 272, engine 273 KE 18 G
U151 Valid for engine 113 21 G
U152 Valid for engine 156 18 H
U29 Valid for outside temperature indicator 4 G
U673 Valid for Comfort AAC [K-KLA] 4 H
U880 Valid for engine 642 16 G

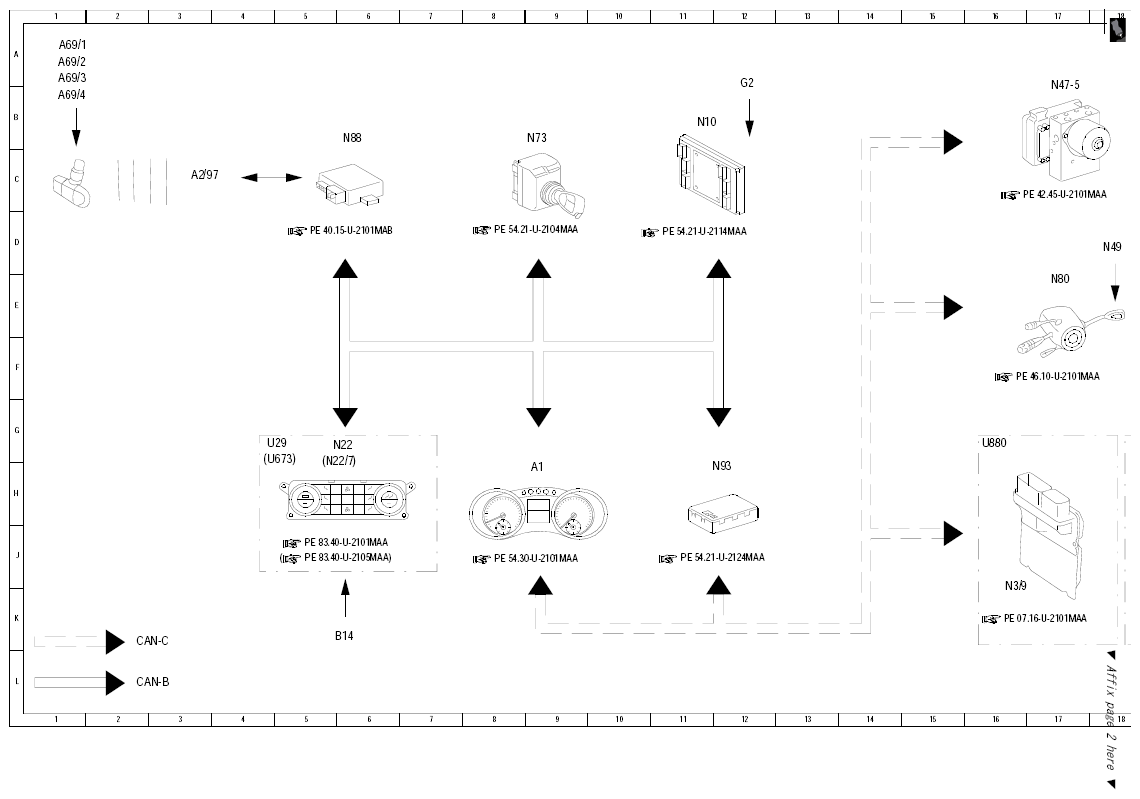

Fig 1: Tire Pressure Monitor Electrical System Function Diagram (1 Of 2)
G10116578Courtesy of MERCEDES-BENZ USA

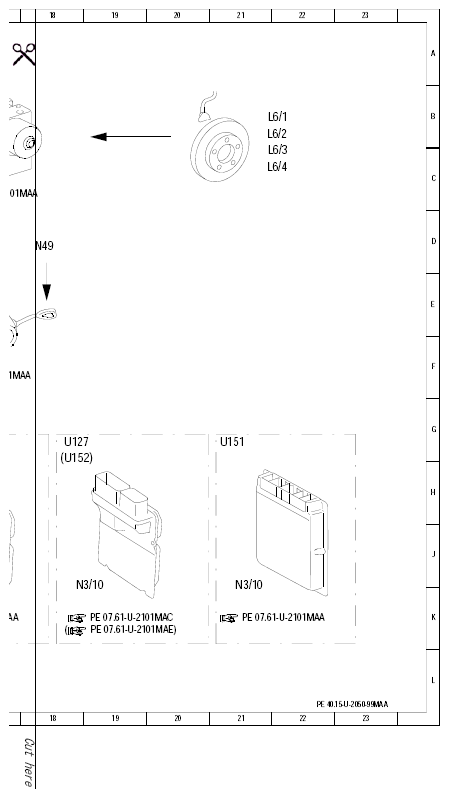

Fig 2: Tire Pressure Monitor Electrical System Function Diagram (2 Of 2)
G10116579Courtesy of MERCEDES-BENZ USA
