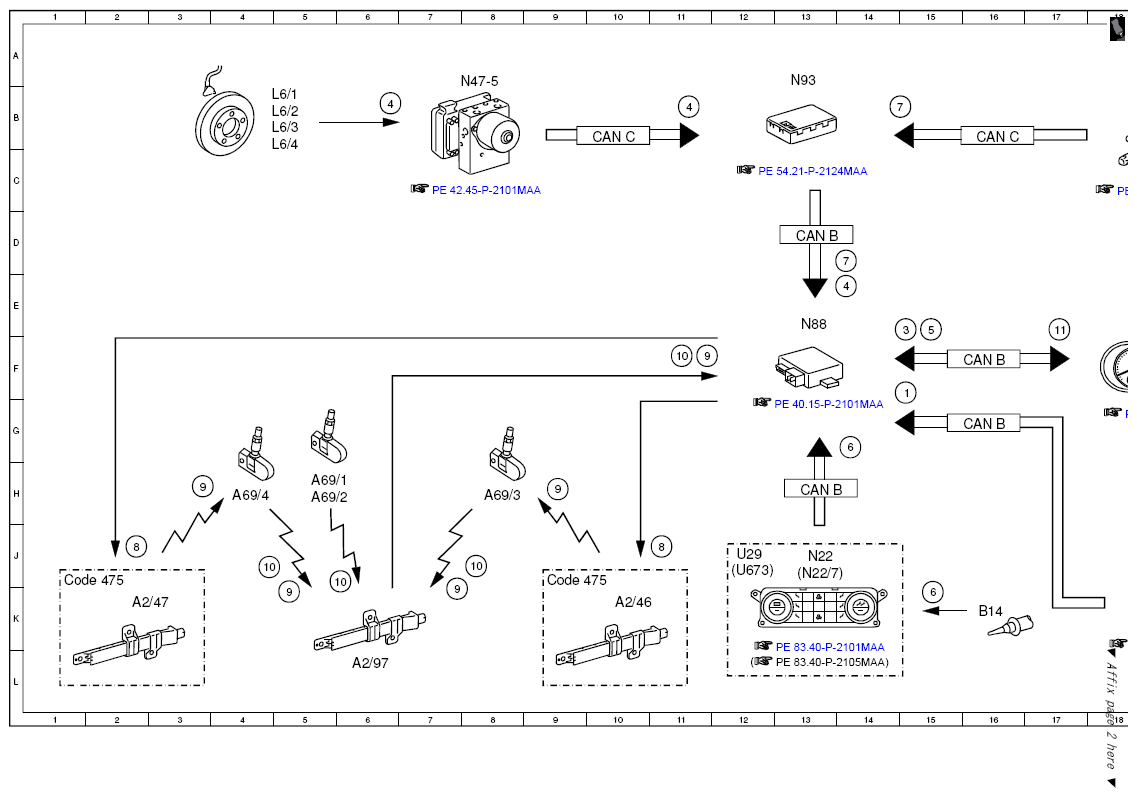

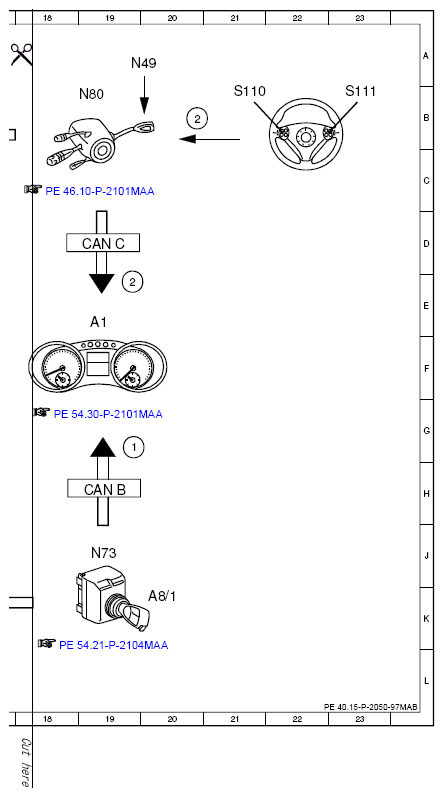

| 1 |
Circuit 15, status |
15F |
| 1 |
Circuit 15, status |
19G |
| 10 |
Tire pressure sensor, signal |
4J |
| 10 |
Tire pressure sensor, signal |
6J |
| 10 |
Tire pressure sensor, signal |
8J |
| 10 |
Tire pressure sensor, signal |
11F |
| 11 |
Tire pressure monitor, message |
17E |
| 2 |
Multifunction steering wheel button group, signal |
19E |
| 2 |
Multifunction steering wheel button group, signal |
20B |
| 3 |
Activate tire pressure monitor, request |
15E |
| 4 |
Wheel speed, signal |
6B |
| 4 |
Wheel speed, signal |
11B |
| 4 |
Wheel speed, signal |
14E |
| 5 |
Vehicle speed, signal |
15E |
| 6 |
Outside temperature, signal |
15K |
| 6 |
Outside temperature, signal |
14G |
| 7 |
Steering angle sensor, signal |
14D |
| 7 |
Steering angle sensor, signal |
14B |
| 8 |
Transmit trigger signal, request |
2J |
| 8 |
Transmit trigger signal, request |
11J |
| 9 |
Trigger, signal |
3H |
| 9 |
Trigger, signal |
5K |
| 9 |
Trigger, signal |
7K |
| 9 |
Trigger, signal |
9H |
| 9 |
Trigger, signal |
11F |
| A1 |
Instrument cluster |
19E |
| A2/46 |
Left rear TPM [RDK] wheel antenna |
10K |
| A2/47 |
Right rear TPM [RDK] wheel antenna |
2K |
| A2/97 |
Central TPM [RDK] antenna |
6L |
| A69/1 |
Left front TPM [RDK] wheel sensor |
5H |
| A69/2 |
Right front TPM [RDK] wheel sensor |
5H |
| A69/3 |
Left rear TPM [RDK] wheel sensor |
8H |
| A69/4 |
Right rear TPM [RDK] wheel sensor |
4H |
| A8/1 |
Transmitter key |
20K |
| B14 |
Outside temperature display temperature sensor |
16K |
| CAN B |
Interior CAN |
13H |
| CAN B |
Interior CAN |
16G |
| CAN B |
Interior CAN |
16F |
| CAN B |
Interior CAN |
19H |
| CAN B |
Interior CAN |
13C |
| CAN C |
Engine compartment CAN |
10B |
| CAN C |
Engine compartment CAN |
16B |
| CAN C |
Engine compartment CAN |
19D |
| Code 475 |
Tire pressure monitor |
2J |
| Code 475 |
Tire pressure monitor |
10J |
| L6/1 |
Left front RPM sensor |
4B |
| L6/2 |
Right front RPM sensor |
4B |
| L6/3 |
Left rear RPM sensor |
4B |
| L6/4 |
right rear RPM sensor |
4B |
| N22 |
AAC [KLA] control and operating unit |
13J |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
13J |
| N47-5 |
ESP control unit |
8A |
| N49 |
Steering angle sensor |
19A |
| N73 |
EIS [EZS] control unit |
19J |
| N80 |
Steering column module |
19B |
| N88 |
TPM [RDK] control unit |
13E |
| N93 |
Central gateway control unit |
13A |
| S110 |
Left multifunction steering wheel button group |
21B |
| S111 |
Right multifunction steering wheel button group |
23B |
| U29 |
Valid for AAC [KLA] |
12J |
| U673 |
Valid for comfort AAC [K-KLA] |
12J |
