| A45 |
Fanfare horns and airbag clock spring contact |
26C |
| A74 |

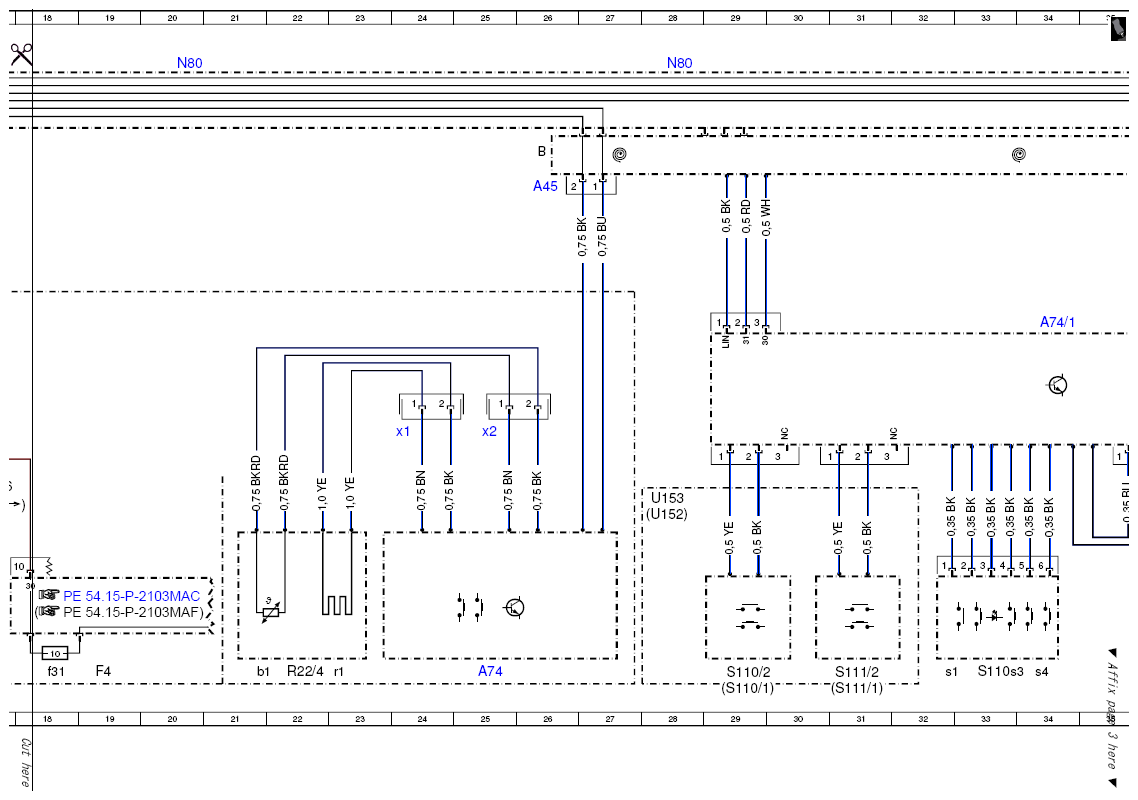

Steering wheel heater/horn electronics |
25L |
| A74/1 |
Multifunction steering wheel electronics unit |
34E |
| A74x1 |
Connector 1/electronics steering wheel heater |
24G |
| A74x2 |
Connector 2/electronics steering wheel heater |
25G |
| F3 |

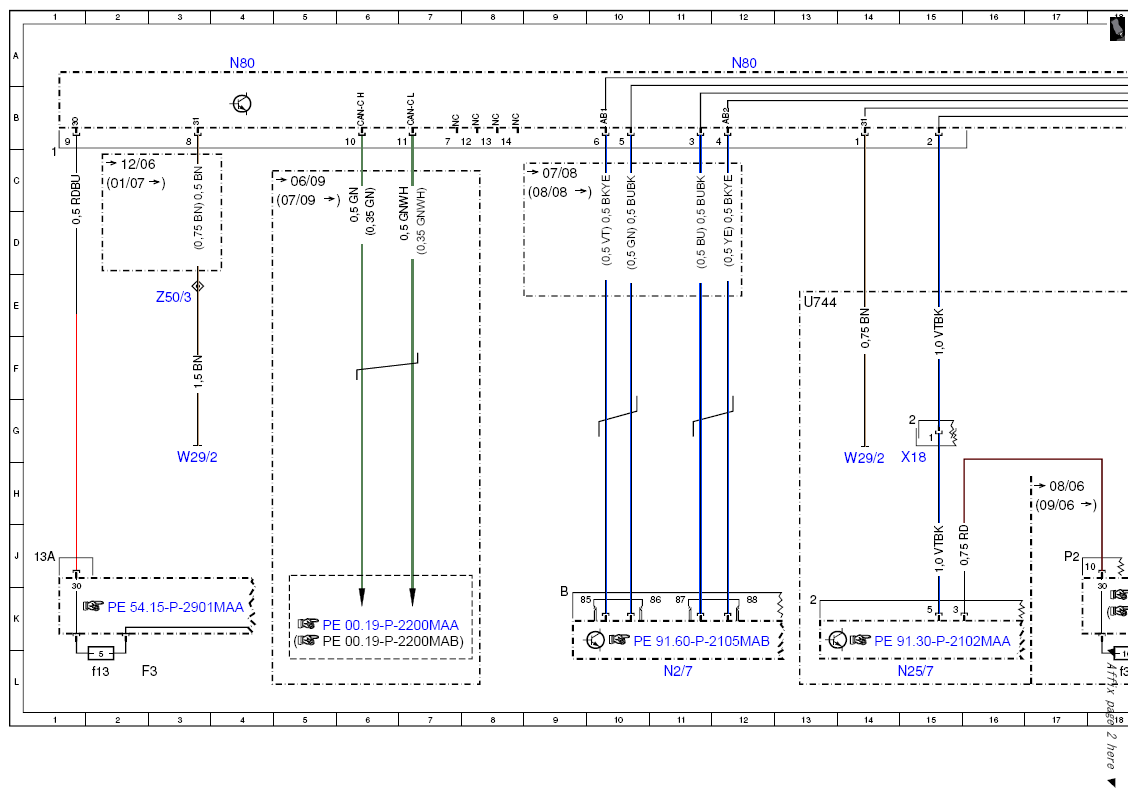

Cockpit fuse box |
2L |
| F3f13 |
Fuse 13 |
|
| F4 |
Load compartment fuse and relay box |
19L |
| F4f31 |
Fuse 31 |
|
| N2/7 |
Restraint systems control unit |
11L |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
15L |
| N49 |
Steering angle sensor |
57C |
| N80 |
Steering column module |
4A |
| N80 |
Steering column module |
12A |
| N80 |
Steering column module |
28A |
| N80 |
Steering column module |
36A |
| N80 |
Steering column module |
45A |
| N80 |
Steering column module |
53A |
| N80 |
Steering column module |
59A |
| N80 |
Steering column module |
20A |
| R12/13 |

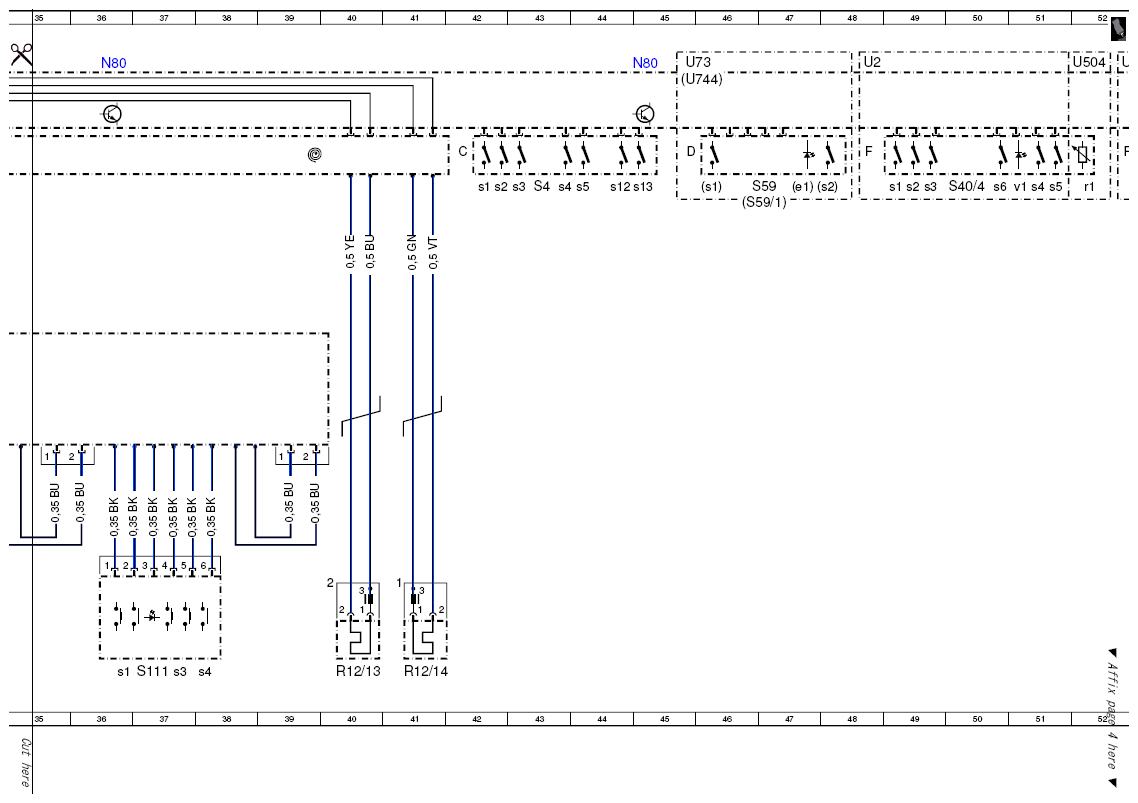

Driver airbag ignition squib 1 |
40L |
| R12/14 |
Driver airbag ignition squib 2 |
41L |
| R22/4 |
Steering wheel heater |
22L |
| R22/4b1 |
Heater coil temperature sensor |
21L |
| R22/4r1 |
Heater coil |
|
| S110 |
Left multifunction steering wheel button group |
33L |
| S110/1 |
Steering wheel gear shifter MINUS |
29L |
| S110/2 |
Left steering wheel gear shifter |
29L |
| S110s1 |
Scroll forward/back button |
|
| S110s3 |
System selection button |
|
| S110s4 |
VCS [SBS] off button |
|
| S111 |
Right multifunction steering wheel button group |
37L |
| S111/1 |
Steering wheel gear shifter PLUS |
31L |
| S111/2 |
Right steering wheel gear shifter |
31L |
| S111s1 |
Buttons + and - for setting specific functions and volume control |
36L |
| S111s3 |
Accept/terminate phone call button |
|
| S111s4 |
VCS [SBS] on button |
|
| S16/13 |
Gear selector switch DIRECT SELECT |
58C |
| S4 |
Combination switch |
43C |
| S40 |

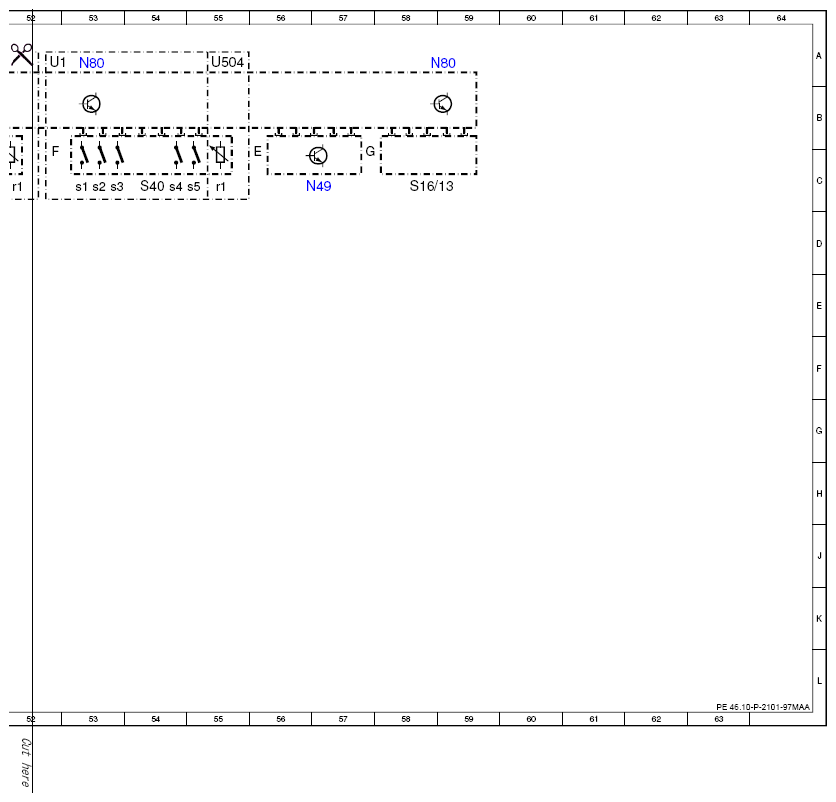

CC [TPM] switch |
54C |
| S40/4 |
CC [TPM] switch |
50C |
| S40/4r1 |
DTR distance potentiometer |
52C |
| S40/4s1 |
Resume from memory |
49C |
| S40/4s2 |
Decelerate and set |
49C |
| S40/4s3 |
Accelerate and set |
49C |
| S40/4s4 |
Off |
51C |
| S40/4s5 |
Control contact |
51C |
| S40/4s6 |
Variable speed |
50C |
| S40/4v1 |
Yellow LED, variable speed limiter |
51C |
| S40r1 |
DTR distance potentiometer |
|
| S40s1 |
Resume from memory |
53C |
| S40s2 |
Decelerate and set |
53C |
| S40s3 |
Accelerate and set |
53C |
| S40s4 |
Off |
54C |
| S40s5 |
Control contact |
55C |
| S4s1 |
Left and right turn signal switch |
42C |
| S4s12 |
Rear-end door window washer system switch |
44C |
| S4s13 |
Rear-end door intermittent wash switch |
45C |
| S4s2 |
Headlamp flasher/high beam switch |
42C |
| S4s3 |
Low beam switch |
43C |
| S4s4 |
Windshield washer system switch |
43C |
| S4s5 |
Wipe switch |
44C |
| S59 |
Steering column adjustment switch |
47C |
| S59 |
Steering column adjustment switch |
|
| S59/1 |
Steering column adjustment/steering wheel heater switch |
46C |
| S59/1 |
Steering column adjustment/steering wheel heater switch |
|
| S59/1e1 |
Steering wheel heater function indicator lamp |
|
| S59/1e1 |
Steering wheel heater function indicator lamp |
|
| S59/1s1 |
Steering column adjustment raise/lower, forward/back switch |
|
| S59/1s1 |
Steering column adjustment raise/lower, forward/back switch |
|
| S59/1s2 |
Steering wheel heater switch |
|
| S59/1s2 |
Steering wheel heater switch |
|
| U1 |
Valid for USA |
52A |
| U152 |
Valid for engine 156 |
28H |
| U153 |
Valid for all except engine 156 |
28H |
| U2 |
Valid for all exceptUSA |
48A |
| U504 |
Valid for DTR |
52A |
| U504 |
Valid for DTR |
55A |
| U73 |
Valid for ESC [ELV] |
45A |
| U73 |
Valid for ESC [ELV] |
|
| U744 |
Valid for steering wheel heater |
13E |
| U744 |
Valid for steering wheel heater |
45A |
| U744 |
Valid for steering wheel heater |
|
| W29/2 |
Ground (right A-pillar) |
3G |
| W29/2 |
Ground (right A-pillar) |
14H |
| X18 |
Interior/cockpit connector |
15H |
| Z50/3 |
Circuit 31 cockpit connector sleeve (1, left) |
3E |
