Wiring diagram for electric power steering control unit - PE46.35-P-2101-97MAA

Code:	Designation:	Position:
A0	Color code key	23L
A91/1	Electrohydraulic power steering	4A
A91/1	Electrohydraulic power steering	11A
A91/1	Electrohydraulic power steering	17A
F58	Engine compartment fuse and relay box	9L
F58f124	Fuse 124	10L
U411	Valid for EHPS	7D
U411	Valid for EHPS	15A
U411	Valid for EHPS	8D
U880	Valid for engine 642	1J
U880	Valid for engine 642	15A
U880	Valid for engine 642	7D
U978	Valid for full hybrid drive	4D
U978	Valid for full hybrid drive	11A
U978	Valid for full hybrid drive	4D
W30/4	Power steering pump ground	3E
X25/2	Engine compartment/interior compartment connector	16E
X30/19	Passenger-side voltage distributor (CAN C) connector	17L
X30/21	Drive train CAN voltage distributor connector	13L

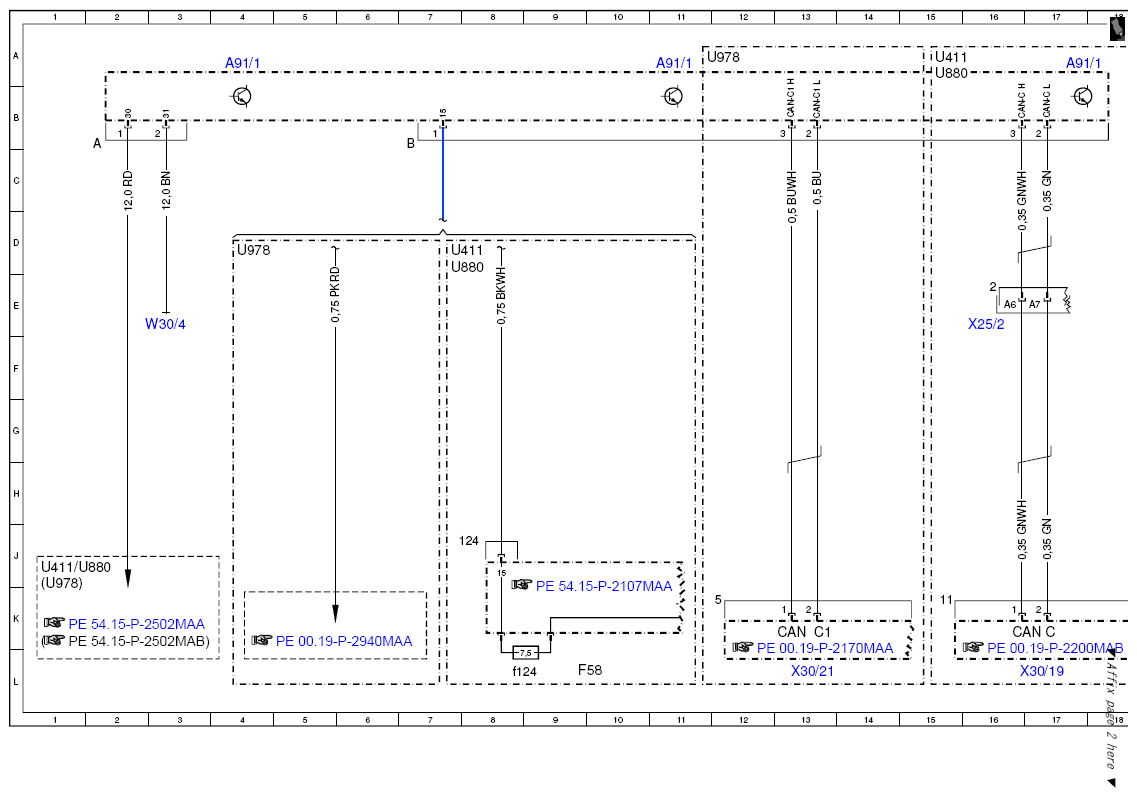

Fig 1: Electric Power Steering Control Unit Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Electric Power Steering Control Unit Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
