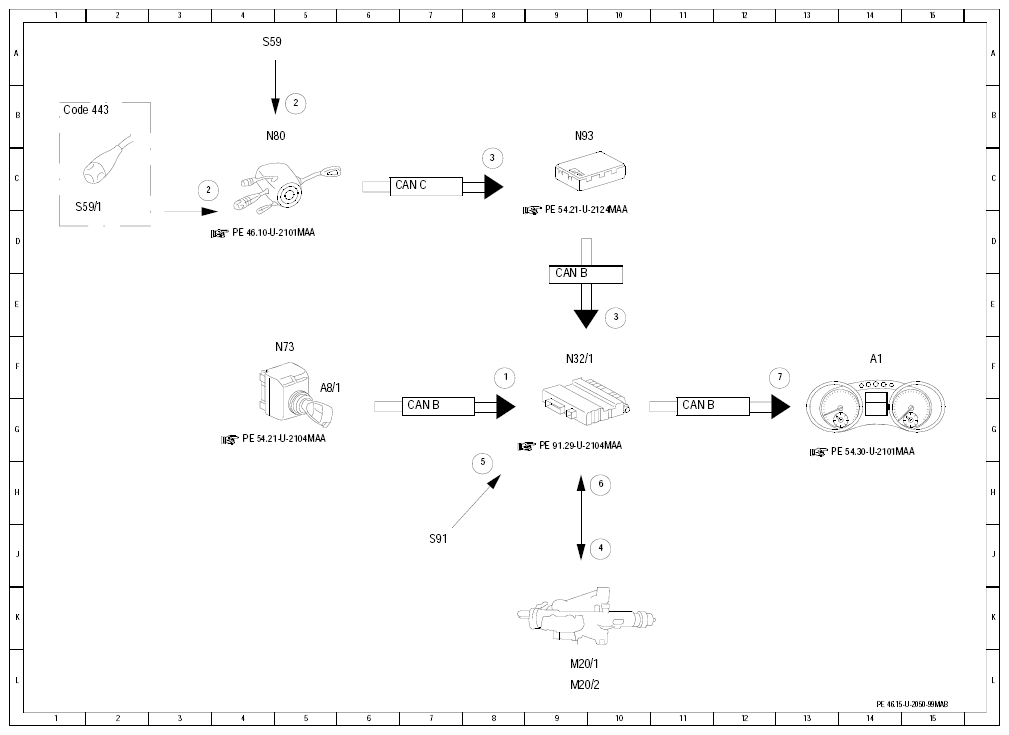

| 1 |
Circuit 15, status |
8 F |
| 2 |
Steering column adjustment switch, status |
3 C |
| 2 |
Steering column adjustment switch, status |
5 B |
| 3 |
Steering column motor, request |
8 C |
| 3 |
Steering column motor, request |
10 E |
| 4 |
Steering column motor, actuation |
10 J |
| 5 |
Store/call up steering column motor position, request |
8 H |
| 6 |
Steering column motor, signal |
10 H |
| 7 |
Acknowledgement tone after memory positions stored successfully, request |
13 F |
| A1 |
Instrument cluster |
14 F |
| A8/1 |
Transmitter key |
5 G |
| CAN B |
Interior CAN |
7 G |
| CAN B |
Interior CAN |
9 E |
| CAN B |
Interior CAN |
11 G |
| CAN C |
Engine compartment CAN |
6 C |
| Code 443 |
Steering wheel heater |
1 B |
| M20/1 |
Steering column forward/back motor |
9 L |
| M20/2 |
Steering column raise/lower motor |
9 L |
| N32/1 |
Driver front seat adjustment control module with memory |
9 F |
| N73 |
EIS [EZS] control unit |
5 F |
| N80 |
Steering column module |
4 B |
| N93 |
Central gateway control module |
9 C |
| S59 |
Steering column adjustment switch |
4 A |
| S59/1 |
Steering column adjustment/steering wheel heater switch |
1 D |
| S91 |
Driver seat with memory adjustment switch group |
7 J |
