Wiring diagram of CAN bus - interior compartment - PE00.19-U-2300-99MAC

MODEL 164.8 Voltage distributor X30/5, specification 3

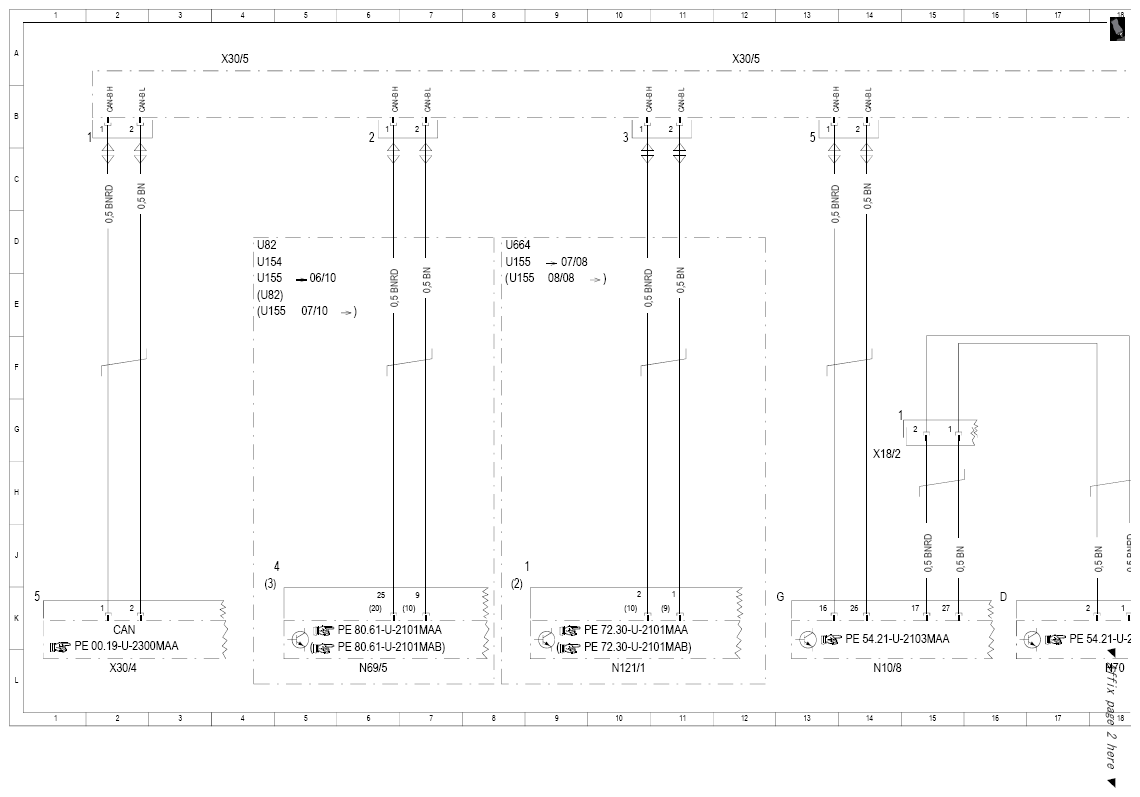

Fig 1: CAN Bus Interior Compartment - Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

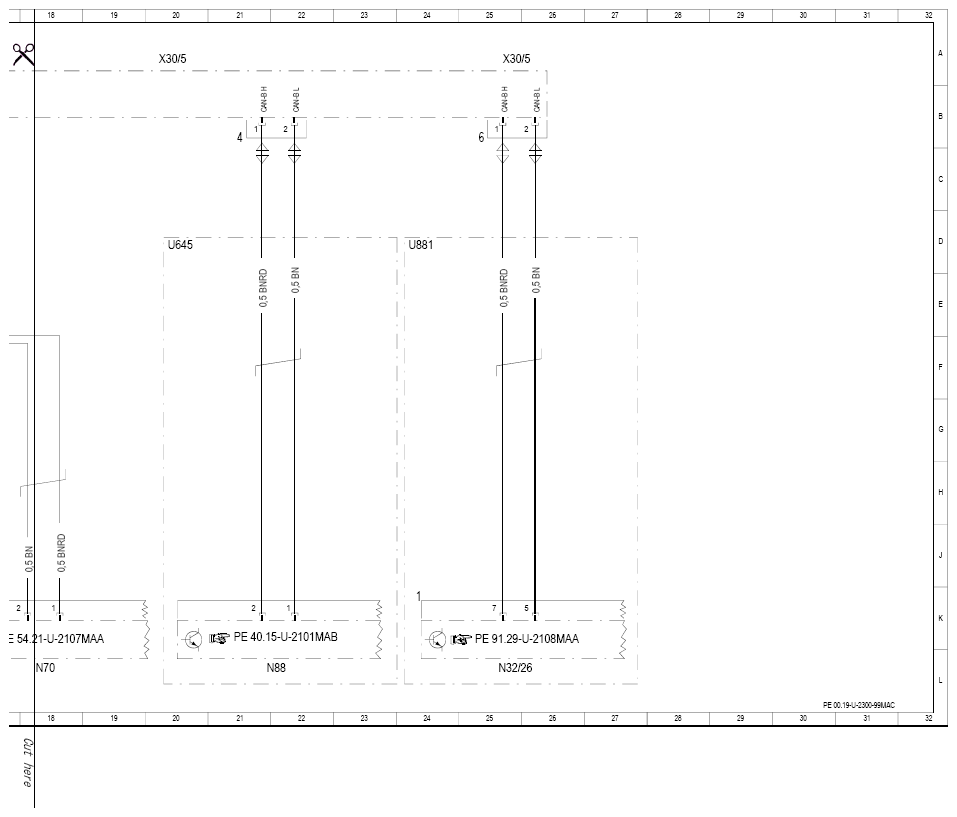

Fig 2: CAN Bus Interior Compartment - Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
