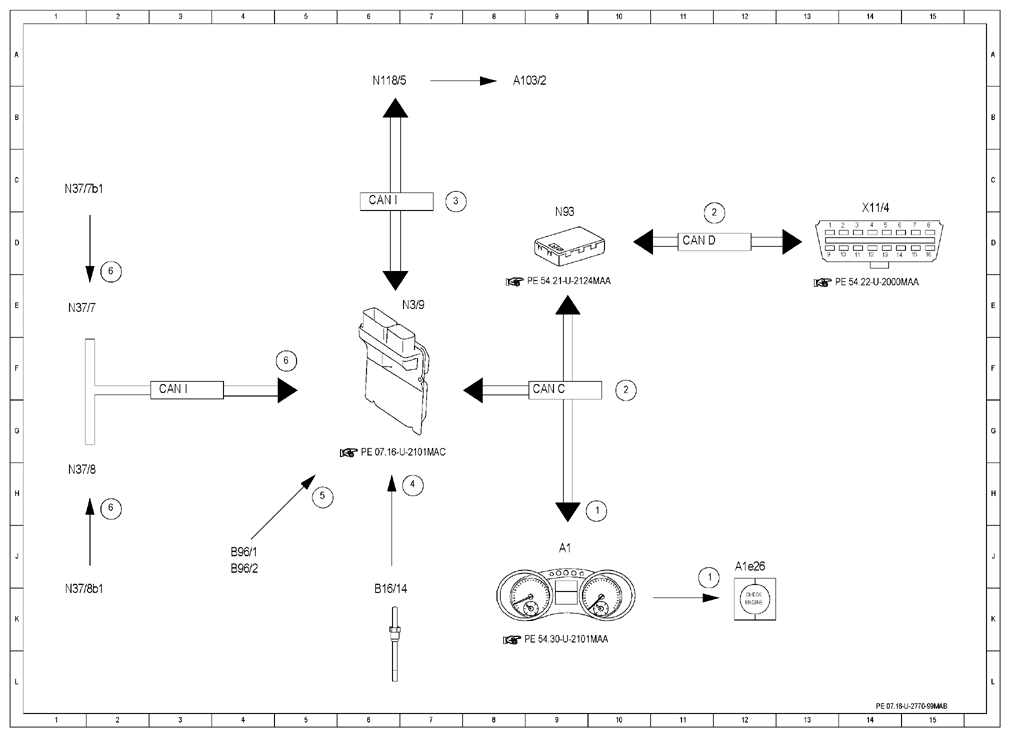

| 1 |
CHECK ENGINE indicator lamp, actuation |
10 H |
| 1 |
CHECK ENGINE indicator lamp, actuation |
11 J |
| 2 |
Engine control diagnosis, communication |
10 F |
| 2 |
Engine control diagnosis, communication |
11 D |
| 3 |
AdBlue® system diagnosis, communication |
7 C |
| 4 |
Exhaust gas recirculation temperature sensor, signal |
7 H |
| 5 |
Condensation sensor for fuel filter with heating element, signal |
5 H |
| 6 |
NOx sensor, signal |
2 H |
| 6 |
NOx sensor, signal |
2 E |
| 6 |
NOx sensor, signal |
5 F |
| A1 |
Instrument cluster |
9 J |
| A103/2 |
AdBlue® delivery module |
8 B |
| A1e26 |
"CHECK ENGINE" MIL |
12 J |
| B16/14 |
Exhaust gas recirculation temperature sensor |
6 K |
| B96/1 |
Left intake port shutoff end position sensor |
4 J |
| B96/2 |
Right intake port shutoff end position sensor |
4 J |
| CAN C |
Engine compartment CAN |
9 G |
| CAN D |
Diagnostic CAN |
11 D |
| CAN I |
Drive train sensor CAN |
3 G |
| CAN I |
Drive train sensor CAN |
6 C |
| N118/5 |
AdBlue® control unit |
6 B |
| N3/9 |
CDI control module |
7 E |
| N37/7 |
NOx control unit downstream of diesel particulate filter |
1 E |
| N37/7b1 |
NOx sensor downstream of diesel particulate filter |
1 C |
| N37/8 |
NOx control unit downstream of SCR catalytic converter |
1 H |
| N37/8b1 |
NOx sensor downstream of SCR catalytic converter |
1 K |
| N93 |
Central gateway control module |
9 D |
| X11/4 |
Data link connector |
14 D |
