Electrical Function Schematic For Common Rail Diesel Injection (CDI), Zero Quantity Calibration - PE07.16-U-2767-99MAA

Code: Designation: Position:
1 Fuel injectors, actuation 3 F
10 Fuel temperature sensor, signal 5 E
2 Oxygen sensor, signal 7 D
3 Crankshaft Hall sensor, signal 9 F
4 Accelerator pedal sensor, signal 6 E
5 Coolant temperature sensor, signal 8 H
6 Boost pressure sensor, signal 7 H
7 Rail pressure sensor, signal 9 E
8 Oil temperature sensor, signal 9 G
9 Charge air temperature sensor, signal 5 H
B1 Oil temperature sensor 12 K
B11/4 Coolant temperature sensor 9 K
B17/8 Charge air temperature sensor 3 J
B37 Accelerator pedal sensor 4 C
B4/6 Rail pressure sensor 11 D
B5/1 Charge pressure sensor 7 K
B50 Fuel temperature sensor 2 D
B70 Crankshaft Hall sensor 12 F
G3/2 O2 sensor 1 upstream TWC [KAT] 7 C
N3/9 CDI control module 7 E
Y76y1 Fuel injector (1st cylinder) 2 F
Y76y2 Fuel injector (2nd cylinder) 2 F
Y76y3 Fuel injector (3rd cylinder) 2 F
Y76y4 Fuel injector (4th cylinder) 2 F
Y76y5 Fuel injector cylinder 5 2 G
Y76y6 Fuel injector cylinder 6 2 G

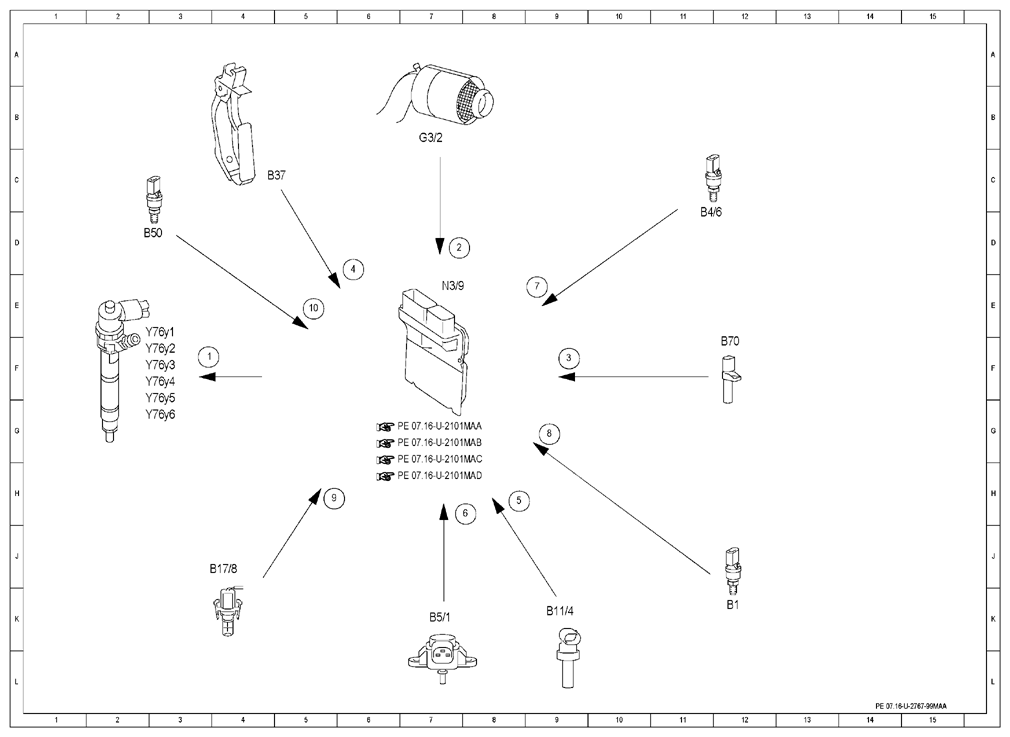

Fig 1: Common Rail Diesel Injection Electrical Function Schematic
G10120091Courtesy of MERCEDES-BENZ USA
