Electrical Function Schematic For Common Rail Diesel Injection (CDI), Heat Management - PE07.16-U-2763-99MAB

Code: Designation: Position:
1 Electric radiator fan, actuation 8 D
2 Fuel injectors, actuation 3 E
3 Quantity control valve, actuation 5 C
4 Crankshaft Hall sensor, signal 5 H
5 Fuel temperature sensor, signal 4 E
6 Pressure regulator valve, actuation 3 C
7 Temperature sensor upstream of turbocharger, signal 7 E
8 Coolant temperature sensor, signal 7 G
9 Oil temperature sensor, signal 3 G
B1 Oil temperature sensor 1 H
B11/4 Coolant temperature sensor 9 H
B19/11 Temperature sensor upstream of turbocharger 9 E
B50 Fuel temperature sensor 1 D
B70 Crankshaft Hall sensor 5 K
M4/7 Electric suction fan engine and AC with integrated control 8 C
N3/9 CDI control module 5 E
Y74 Pressure regulator valve 3 C
Y76 Fuel injectors 2 F
Y94 Volume control valve 5 C

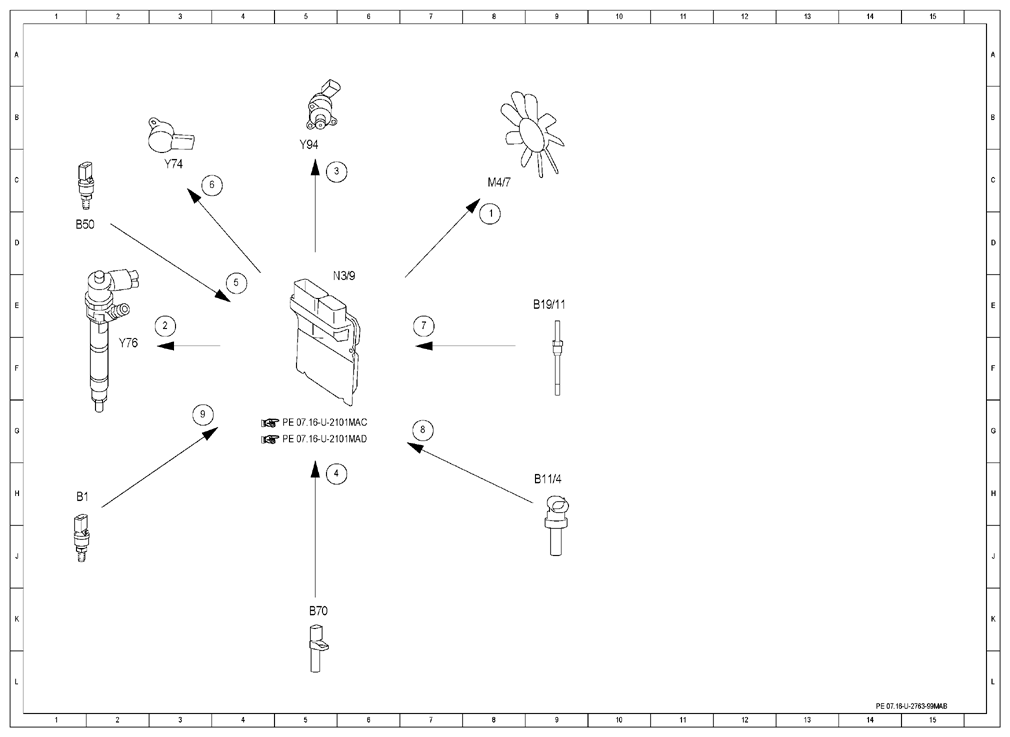

Fig 1: Common Rail Diesel Injection (Heat Management) Electrical Function Schematic
G10120087Courtesy of MERCEDES-BENZ USA
