Wiring diagram Common Rail Diesel Injection (CDI) control module - PE07.16-U-2101-99MAD

ENGINE 642.820 in MODEL 164 with CODE (U42) BlueTEC diesel exhaust treatment (SCR) as of Model Year 2009 control unit N3/9, sheet 2

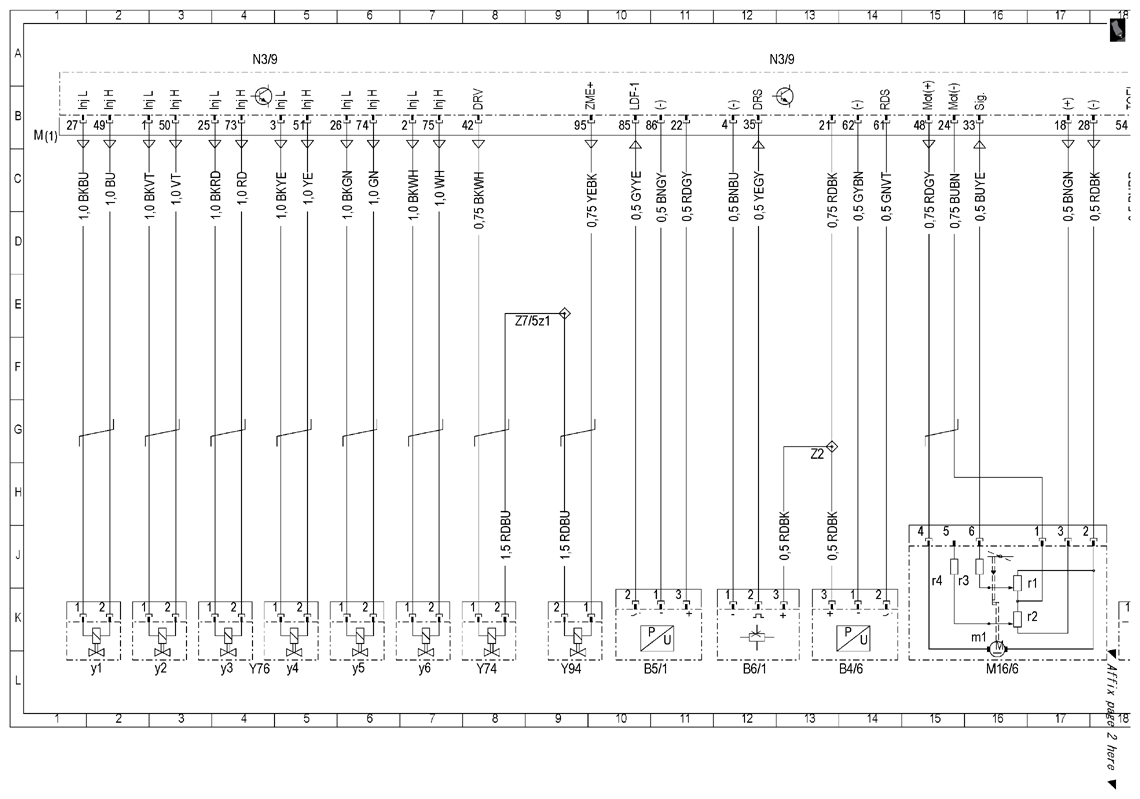

Fig 1: Common Rail Diesel Injection (CDI) Control Module - Wiring Diagram (1 Of 5)

Courtesy of MERCEDES-BENZ USA

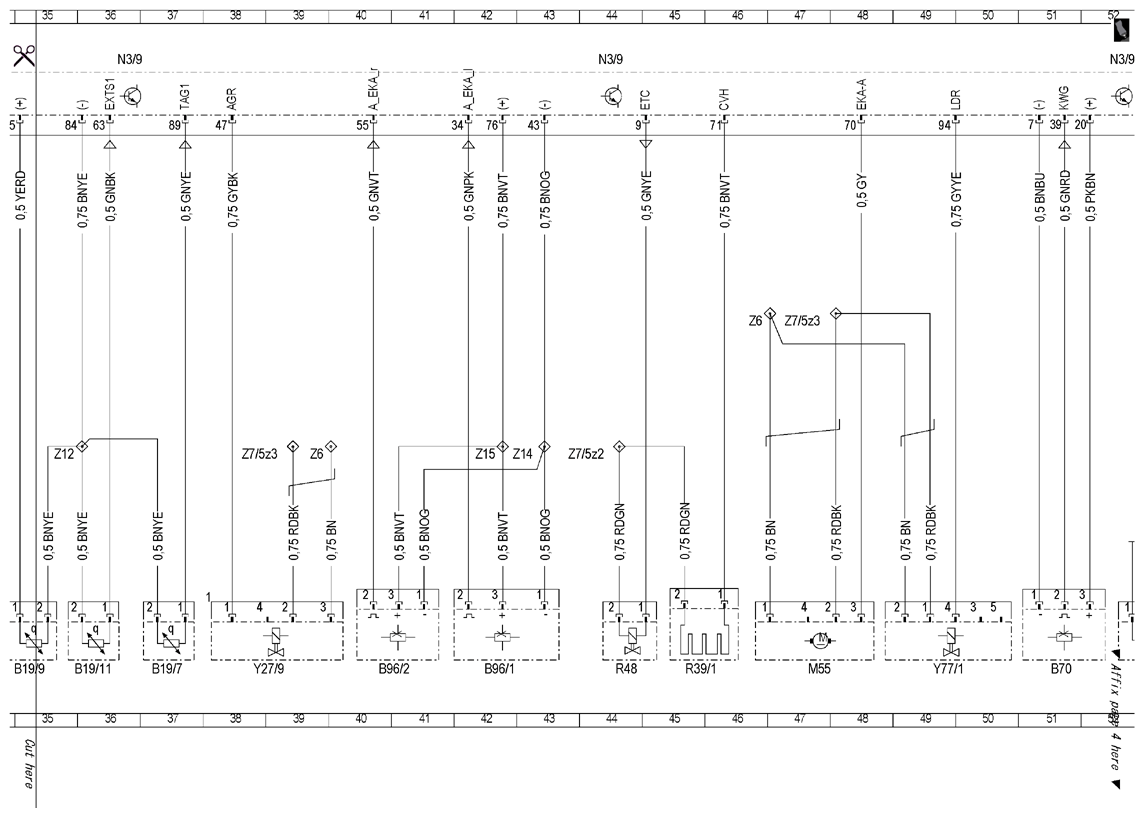

Fig 2: Common Rail Diesel Injection (CDI) Control Module - Wiring Diagram (2 Of 5)

Courtesy of MERCEDES-BENZ USA

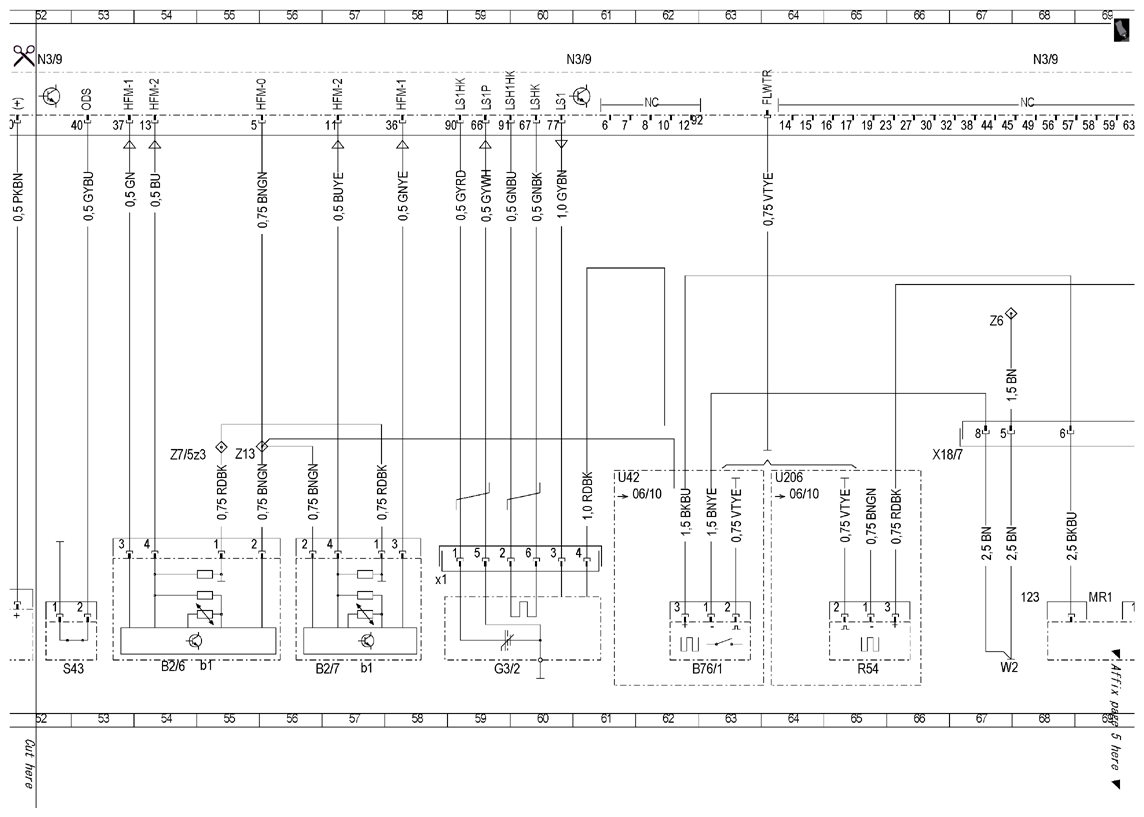

Fig 3: Common Rail Diesel Injection (CDI) Control Module - Wiring Diagram (3 Of 5)

Courtesy of MERCEDES-BENZ USA

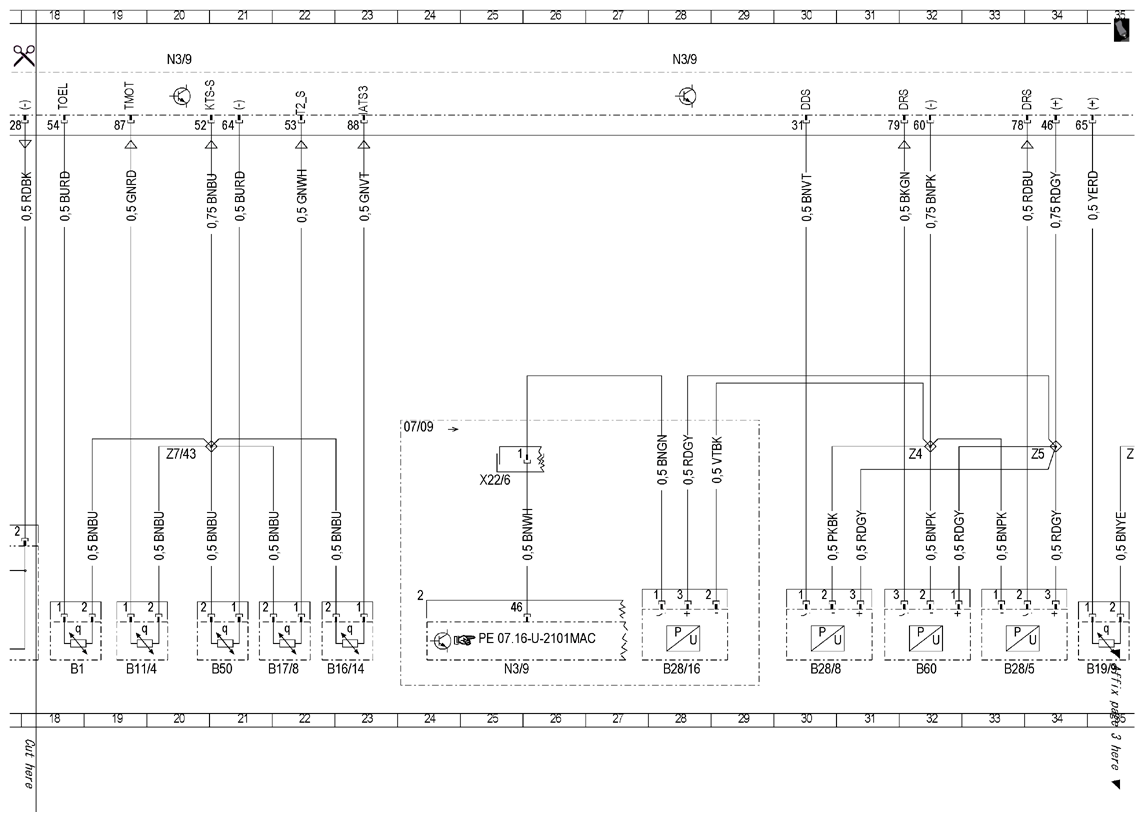

Fig 4: Common Rail Diesel Injection (CDI) Control Module - Wiring Diagram (4 Of 5)

Courtesy of MERCEDES-BENZ USA

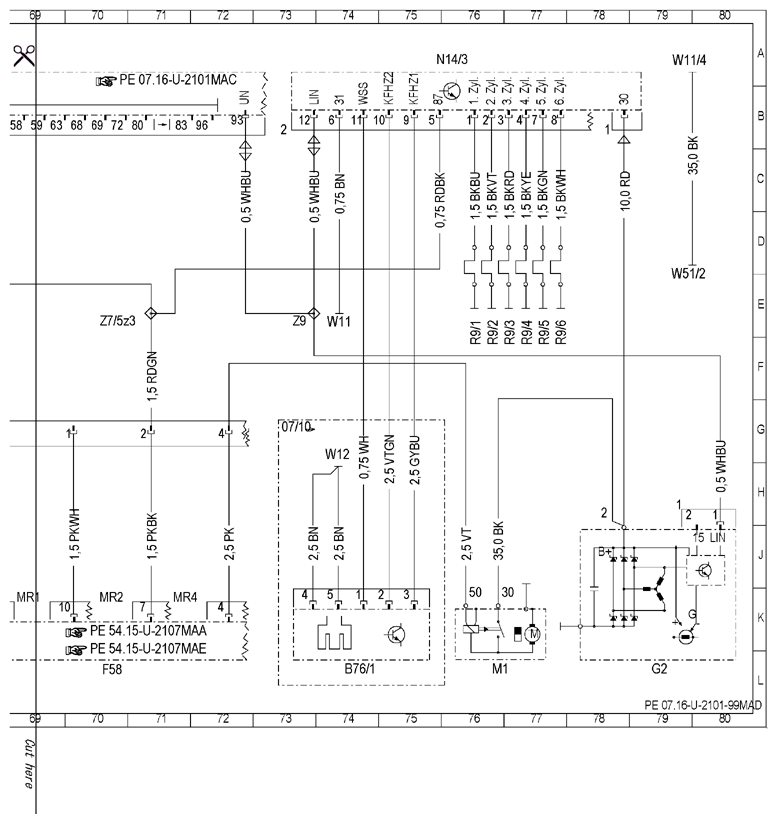

Fig 5: Common Rail Diesel Injection (CDI) Control Module - Wiring Diagram (5 Of 5)

Courtesy of MERCEDES-BENZ USA
