| 1 |
Alternator, status |
7 E |
| 10 |
Oxygen sensor, signal |
7 G |
| 11 |
O2 sensor heater, actuation |
6 J |
| 12 |
Intake port shutoff motor, actuation |
10 J |
| 13 |
Pressure regulator valve, actuation |
9 B |
| 14 |
Fuel injectors, actuation |
4 G |
| 15 |
Quantity control valve, actuation |
5 D |
| 16 |
DIRECT SELECT gear selector switch, status |
11 D |
| 2 |
Alternator, request |
5 E |
| 3 |
Fuel pump relay, actuation |
14 E |
| 3 |
Fuel pump relay, actuation |
16 C |
| 4 |
Air conditioning, status |
11 F |
| 4 |
Air conditioning, status |
15 H |
| 5 |
Accelerator pedal sensor, signal |
11 H |
| 6 |
Crankshaft Hall sensor, signal |
8 D |
| 7 |
Camshaft Hall sensor, signal |
10 D |
| 8 |
Coolant temperature sensor, signal |
8 H |
| 9 |
Rail pressure sensor, signal |
7 D |
| B11/4 |
Coolant temperature sensor |
8 K |
| B37 |
Accelerator pedal sensor |
12 J |
| B4/6 |
Rail pressure sensor |
5 B |
| B6/1 |
Camshaft Hall sensor |
10 A |
| B70 |
Crankshaft Hall sensor |
7 B |
| CAN B |
Interior CAN |
15 F |
| CAN B |
Interior CAN |
16 J |
| CAN C |
Engine compartment CAN |
12 F |
| CAN C |
Engine compartment CAN |
12 E |

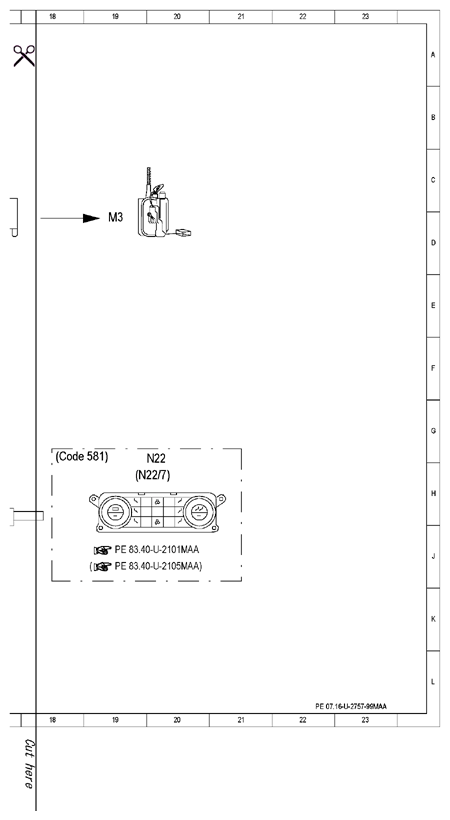

| Code 581 |
Comfort automatic air conditioning |
18 H |
| F4kO |
Fuel pump relay module |
17 D |
| G2 |
Generator |
3 E |
| G3/2 |
O2 sensor 1 upstream TWC [KAT] |
5 J |
| LIN C1 |
Drive train LIN |
5 F |
| M3 |
Right fuel pump |
19 D |
| M55 |
Inlet port shutoff motor |
9 K |
| N10/8 |
Rear SAM control module |
14 C |
| N22 |
AAC pushbutton control module |
19 H |
| N22/7 |
Comfort AAC pushbutton control module |
19 H |

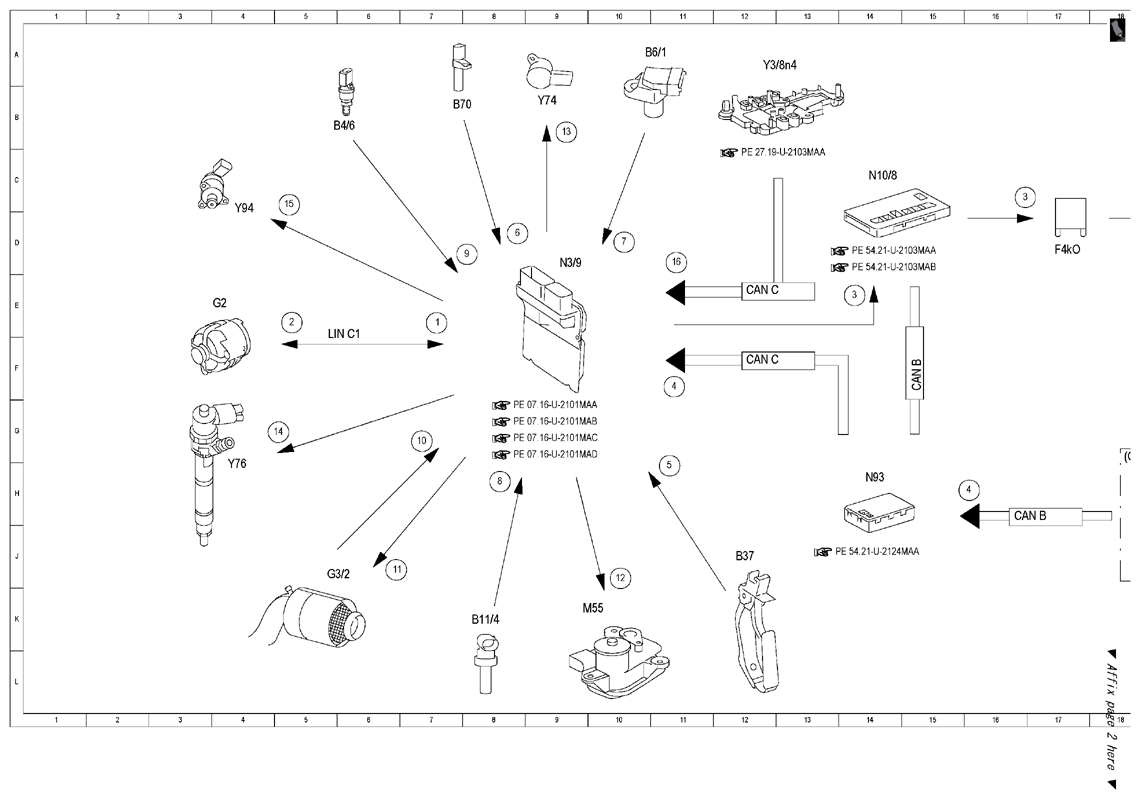

| N3/9 |
CDI control module |
9 D |
| N93 |
Central gateway control module |
14 H |
| Y3/8n4 |
Fully integrated transmission control (VGS) control unit |
12 A |
| Y74 |
Pressure regulator valve |
9 B |
| Y76 |
Fuel injectors |
4 H |
| Y94 |
Volume control valve |
4 D |
