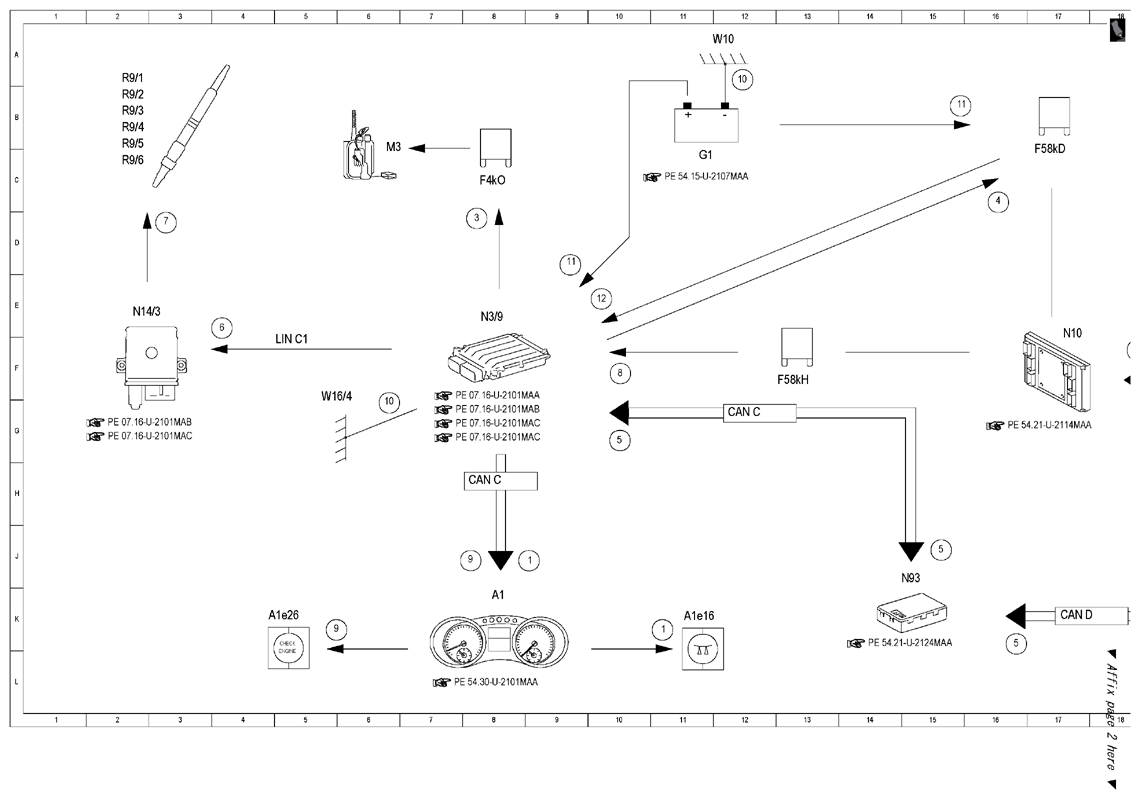

| 1 |
Preglow indicator lamp, actuation |
9 J |
| 1 |
Preglow indicator lamp, actuation |
11 K |
| 10 |
Circuit 31, status |
6 G |
| 10 |
Circuit 31, status |
12 B |
| 11 |
Circuit 30, status |
9 D |
| 11 |
Circuit 30, status |
15 B |
| 12 |
Circuit 87, status |
10 E |
| 3 |
Fuel pump relay, actuation |
8 D |
| 4 |
Engine circuit 87 relay, actuation |
16 C |
| 5 |
Engine control diagnosis, communication |
10 G |
| 5 |
Engine control diagnosis, communication |
15 J |
| 5 |
Engine control diagnosis, communication |
16 L |
| 5 |
Engine control diagnosis, communication |
19 L |
| 6 |
Glow, request |
4 E |
| 7 |
Glow plugs, actuation |
3 D |
| 8 |
Circuit 15, status ON |
10 F |
| 8 |
Circuit 15, status ON |
18 F |
| 9 |
CHECK ENGINE indicator lamp, actuation |
5 K |
| 9 |
CHECK ENGINE indicator lamp, actuation |
8 J |
| A1 |
Instrument cluster |
8 K |
| A1e16 |
Preglow indicator lamp |
11 K |
| A1e26 |
"CHECK ENGINE" MIL |
4 K |

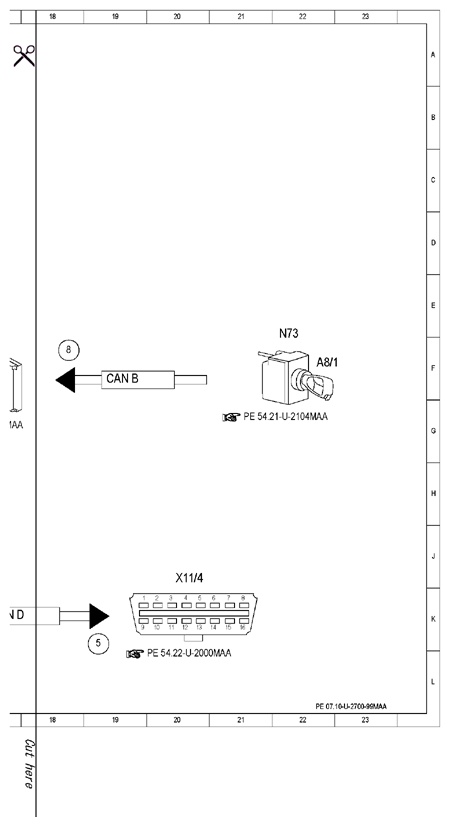

| A8/1 |
Transmitter key |
22 F |
| CAN B |
Interior CAN |
19 F |
| CAN C |
Engine compartment CAN |
8 H |
| CAN C |
Engine compartment CAN |
12 G |
| CAN D |
Diagnostic CAN |
17 K |
| F4kO |
Fuel pump relay |
8 C |
| F58kD |
Engine circuit 87 relay |
17 C |
| F58kH |
Circuit 15 relay |
13 F |
| G1 |
Battery |
11 C |
| LIN C1 |
Drive train LIN |
5 F |
| M3 |
Right fuel pump |
6 C |
| N10 |
Front SAM control unit |
17 F |
| N14/3 |
Glow time output stage |
2 E |
| N3/9 |
CDI control unit |
8 E |
| N73 |
EIS [EZS] control unit |
22 F |
| N93 |
Central gateway control unit |
14 J |
| R9/1 |
Cylinder 1 glow plug |
2 B |
| R9/2 |
Cylinder 2 glow plug |
2 B |
| R9/3 |
Cylinder 3 glow plug |
2 B |
| R9/4 |
Cylinder 4 glow plug |
2 B |
| R9/5 |
Cylinder 5 glow plug |
2 C |
| R9/6 |
Cylinder 6 glow plug |
2 C |
| W10 |
Ground (battery) |
11 A |
| W16/4 |
Ground (right assembly compartment, power ground) |
5 G |
| X11/4 |
Data link connector |
20 J |
