Component description for the ME-SFI [ME] control unit - GF07.61-P-6000AMG

ENGINE 156.980 in MODEL 164, 251 up to Model Year 8

ENGINE 156.982 in MODEL 209

ENGINE 156.983 in MODEL 211, 219

ENGINE 156.984 in MODEL 216, 221 up to Model Year 8

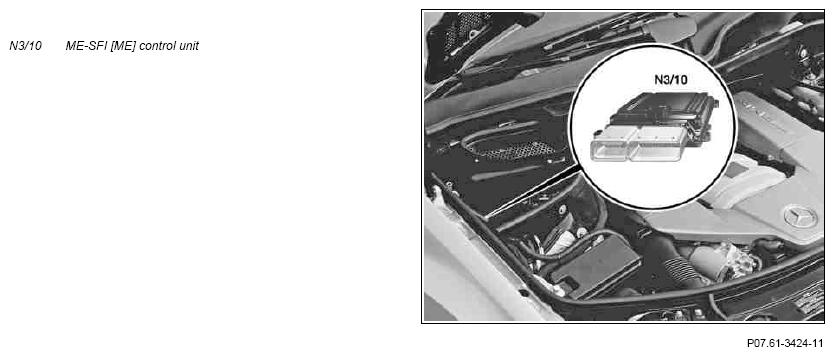

Location for model 164

The ME-SFI [ME] control unit is located behind the front right wheelhouse, between the fender and side wall.

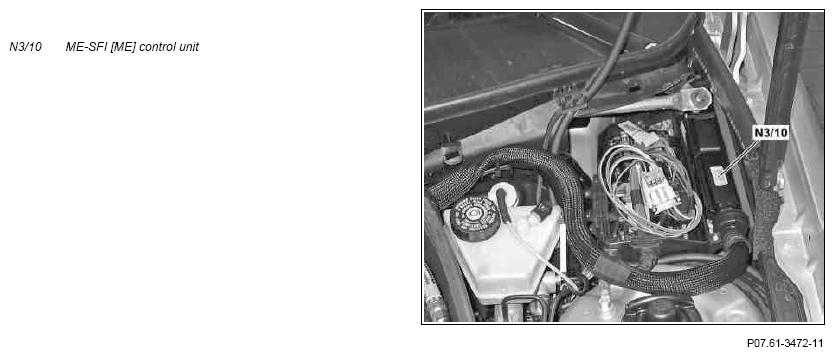

Location on model 209

The ME-SFI [ME] control unit is located at the rear left in the engine compartment.

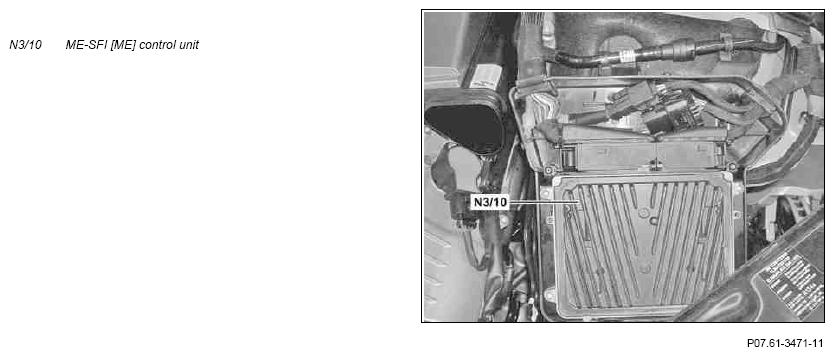

Location for model 211, 219

The ME-SFI [ME] control unit is located at the rear right in the engine compartment.

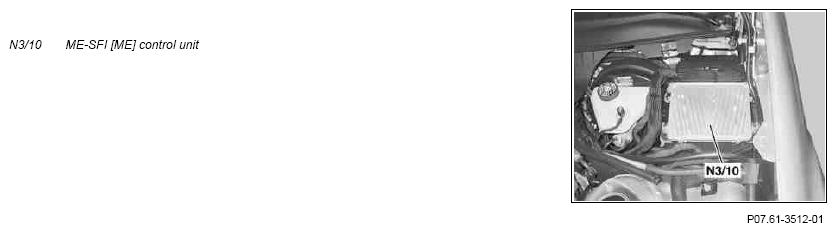

Location for model 216, 221

The ME-SFI [ME] control unit is located at the rear left in the engine compartment.

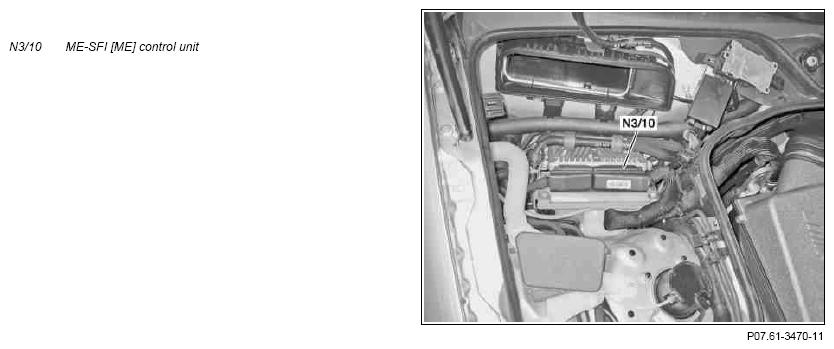

Location for model 251

The ME-SFI [ME] control unit is located in the engine compartment in front of the left wheelhouse.

Design

The housing of the ME-SFI [ME] control unit consists of aluminum and is designed as a shell concept unitary housing.

The housing contains measuring and control electronics for the engine control.

Task

The ME-SFI [ME] control unit controls the engine control ME 9.7 AMG according to input signals.

The abbreviated designation "ME 9.7 AMG" means:

M  = M  otronic

E  = E  lectronic accelerator pedal

9.7  = Version 9.7

AMG  = AMG  specific hardware and software

Function

The following systems are controlled and coordinated by the ME-SFI [ME] control unit:

• Ignition system
• Injection system
• Idle speed control
• Electronic accelerator
• Torque interface
• Alternator interface (LIN)
• Fuel evaporation control system
• Heat management
• Starter control
• Immobilizer and drive authorization system (FBS 3)
• Diagnosis and fault storage
• Emission control

Dependent on the equipment and model, vehicle control units are networked with the ME-SFI [ME] control unit via the CAN data bus (C  ontroller A  rea N  etwork). They can send data to the ME-SFI [ME] control unit depending on the function or receive data from the ME-SFI [ME] control unit.

The engine control in ME-SFI [ME] control unit is flashable. The software required to program the control units is provided on the STAR DIAGNOSIS DAS Update DVD.

Diagnosis

For diagnostic purposes individual function can be actuated in a targeted way using STAR DIAGNOSIS.

Correction programming of individual performance maps and variant coding is also possible using STAR DIAGNOSIS.

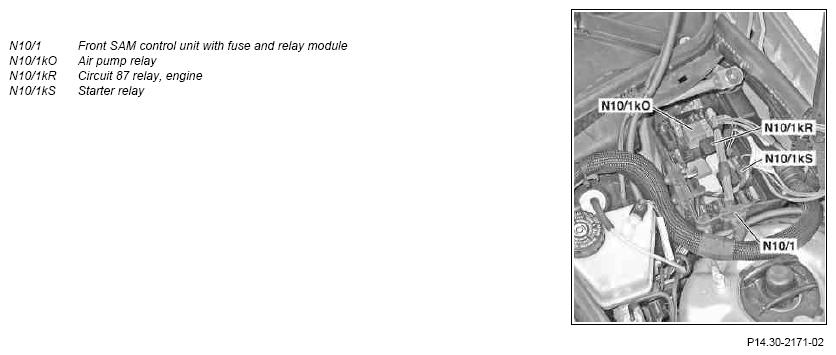

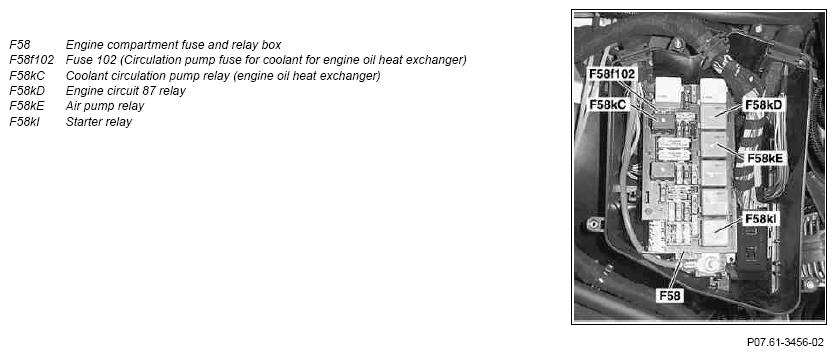

Power supply for engine control for model 164, 251 (shown on right engine compartment)

The engine control in ME-SFI [ME] control unit is supplied with voltage via the engine circuit 87 relay.

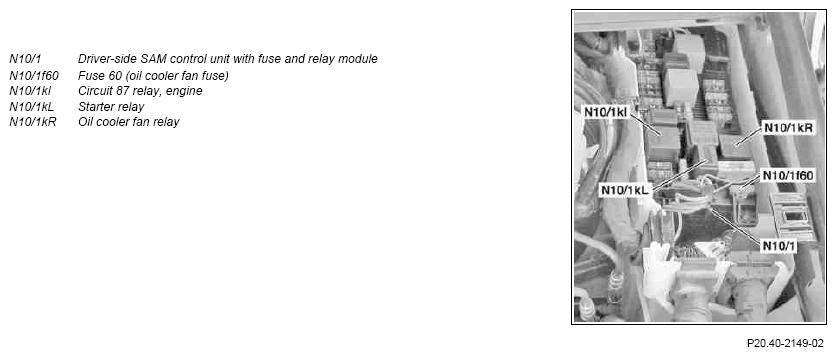

Power supply for engine control for model 209 (shown on left rear engine compartment)

The engine control in ME-SFI [ME] control unit is supplied with voltage via the engine circuit 87 relay.

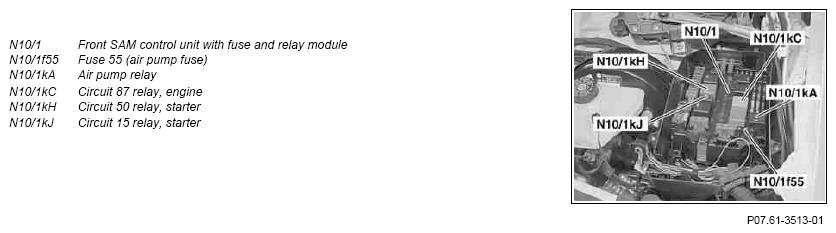

Power supply for engine control for model 219, 211 (shown on left rear engine compartment)

The engine control in ME-SFI [ME] control unit is supplied with voltage via the engine circuit 87 relay.

Actuation for model 216, 221 (shown is the engine compartment at the bottom left)

The engine control in ME-SFI [ME] control unit is supplied with voltage via the engine circuit 87 relay.
