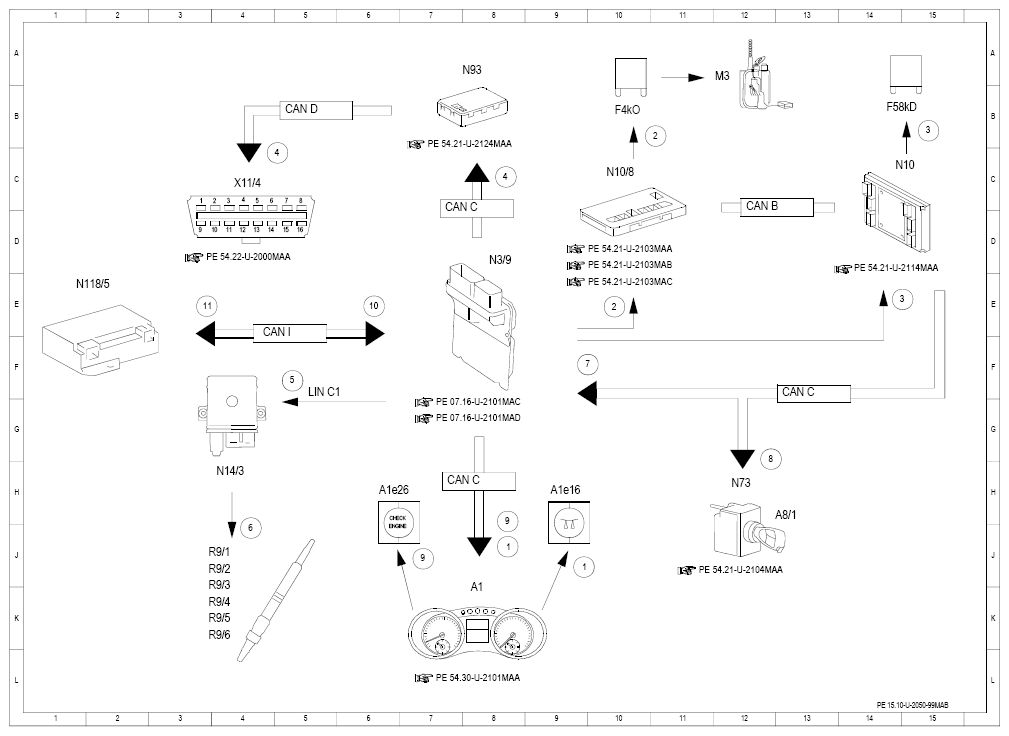

| 1 |
Preglow indicator lamp, actuation |
8 J |
| 1 |
Preglow indicator lamp, actuation |
9 J |
| 10 |
AdBlue® fill level, message |
6 E |
| 11 |
AdBlue® system diagnosis, communication |
3 E |
| 2 |
Fuel pump relay, actuation |
10 E |
| 2 |
Fuel pump relay, actuation |
11 B |
| 3 |
Engine circuit 87 relay, actuation |
14 E |
| 3 |
Engine circuit 87 relay, actuation |
15 B |
| 4 |
Engine control diagnosis, communication |
4 C |
| 4 |
Engine control diagnosis, communication |
8 C |
| 5 |
Glow, request |
5 F |
| 6 |
Glow plugs, actuation |
4 J |
| 7 |
EIS [EZS] control unit DAS [FBS] code, request |
9 F |
| 8 |
CDI control unit FBS code, message |
12 H |
| 9 |
CHECK ENGINE indicator lamp, actuation |
7 J |
| 9 |
CHECK ENGINE indicator lamp, actuation |
8 J |
| A1 |
Instrument cluster |
8 K |
| A1e16 |
Preglow indicator lamp |
9 H |
| A1e26 |
"CHECK ENGINE" MIL |
6 H |
| A8/1 |
Transmitter key |
12 J |
| CAN B |
Interior CAN |
12 D |
| CAN C |
Engine compartment CAN |
7 D |
| CAN C |
Engine compartment CAN |
7 H |
| CAN C |
Engine compartment CAN |
13 G |
| CAN D |
Diagnostic CAN |
5 B |
| CAN I |
Drive train sensor CAN |
4 F |
| F4kO |
Fuel pump relay module |
10 B |
| F58kD |
Engine circuit 87 relay |
14 B |
| LIN C1 |
Drive train LIN |
5 G |
| M3 |
Right fuel pump |
11 B |
| N10 |
Front SAM control unit |
14 C |
| N10/8 |
Rear SAM control module |
10 C |
| N118/5 |
AdBlue® control unit |
1 E |
| N14/3 |
Glow time output stage |
4 H |
| N3/9 |
CDI control module |
8 D |
| N73 |
EIS [EZS] control unit |
12 H |
| N93 |
Central gateway control module |
7 A |
| R9/1 |
Cylinder 1 glow plug |
3 J |
| R9/2 |
Cylinder 2 glow plug |
3 J |
| R9/3 |
Cylinder 3 glow plug |
3 K |
| R9/4 |
Cylinder 4 glow plug |
3 K |
| R9/5 |
Cylinder 5 glow plug |
3 K |
| R9/6 |
Cylinder 6 glow plug |
3 K |
| X11/4 |
Data link connector |
4 C |
