Electrical function schematic for common rail diesel injection (CDI), glowing - PE15.20-U-2050-99MAA

Code: Designation: Position:
1 Circuit 50, status 8 E
2 Coolant temperature sensor, signal 6 D
3 Glow, request 3 E
4 Glow plugs, actuation 3 H
5 Preglow indicator lamp, actuation 12 E
5 Preglow indicator lamp, actuation 15 E
6 Circuit 61, status 7 H
7 Vent line heater element, actuation 4 D
A1 Instrument cluster 13 E
A1e16 Preglow indicator lamp 14 C
A8/1 Transmitter key 10 H
B11/4 Coolant temperature sensor 6 B
CAN C Engine compartment CAN 9 F
G2 Generator 6 L
LIN C1 Drive train LIN 3 F
LIN C1 Drive train LIN 6 J
N14/3 Glow time output stage 2 G
N3/9 CDI control module 6 D
N73 EIS [EZS] control unit 9 G
R39/1 Vent line heater element 3 B
R9/1 Cylinder 1 glow plug 2 J
R9/2 Cylinder 2 glow plug 2 J
R9/3 Cylinder 3 glow plug 2 J
R9/4 Cylinder 4 glow plug 2 J
R9/5 Cylinder 5 glow plug 2 K
R9/6 Cylinder 6 glow plug 2 K

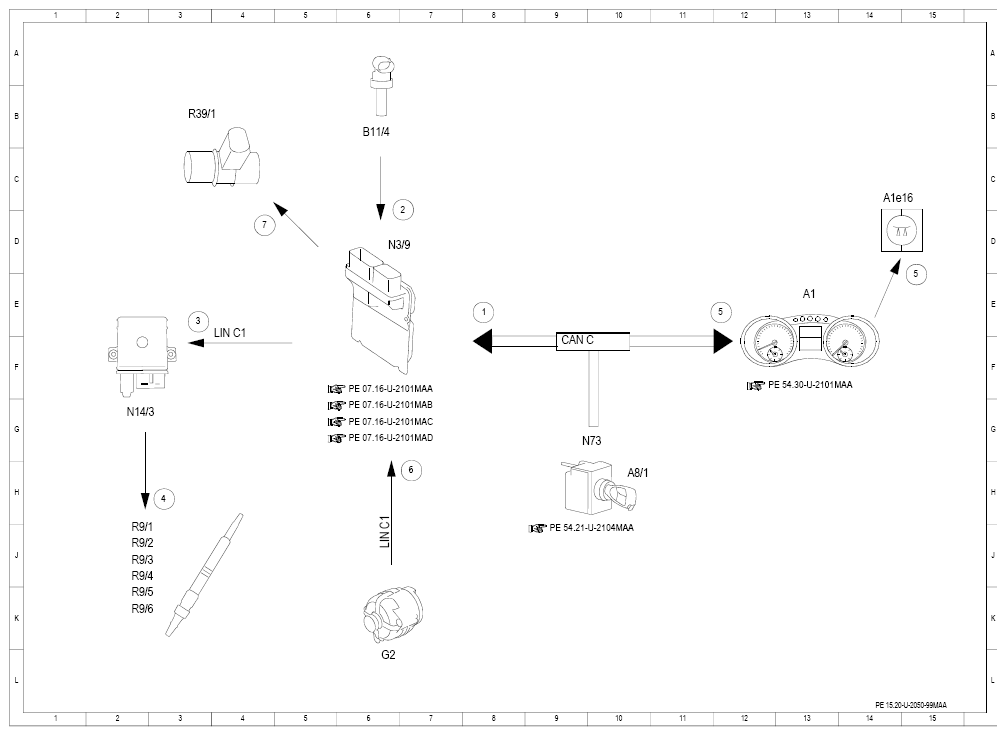

Fig 1: Common Rail Diesel Injection (Glowing) Electrical Function Schematic
G10120131Courtesy of MERCEDES-BENZ USA
