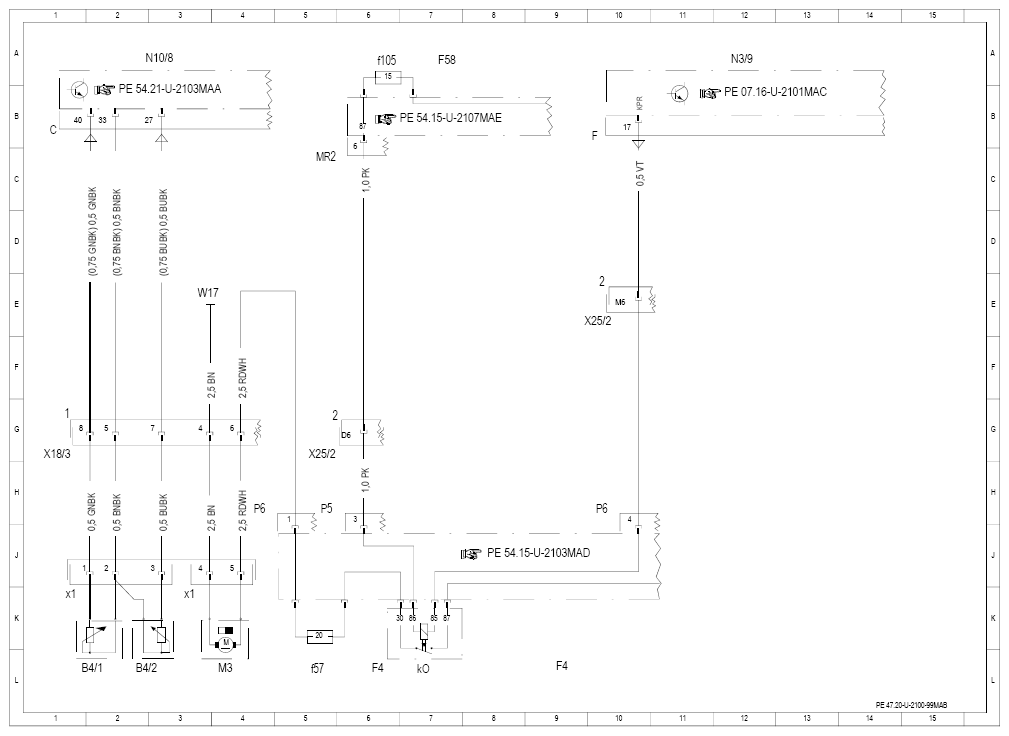

| B4/1 |
Left fuel level sensor |
1 L |
| B4/1x1 |
Left tank half fuel level sensor connector |
1 K |
| B4/2 |
Right fuel level sensor |
2 L |
| F4 |
Load compartment fuse and relay box |
6 L |
| F4 |
Load compartment fuse and relay box |
9 L |
| F4f57 |
Fuse 57 |
5 L |
| F4kO |
Fuel pump relay |
7 L |
| F58 |
Engine compartment fuse and relay box |
7 A |
| F58f105 |
Fuse 105 |
6 A |
| M3 |
Right fuel pump |
4 L |
| M3x1 |
Right fuel pump connector |
3 K |
| N10/8 |
Rear SAM control unit |
2 A |
| N3/9 |
CDI control unit |
12 A |
| W17 |
Ground (right rear seat) |
3 E |
| X18/3 |
Interior/fuel tank connector |
1 H |
| X25/2 |
Engine compartment/interior compartment connector |
5 H |
| X25/2 |
Engine compartment/interior compartment connector |
9 E |
