Electrical function diagram for fuel supply - PE47.00-U-2050-99MAA

Code: Designation: Position:
1 Fuel pump relay, actuation 11 E
1 Fuel pump relay, actuation 12 C
10 Fuel preheating system heating element, actuation 13 J
10 Fuel preheating system heating element, actuation 19 H
10 Fuel preheating system heating element, actuation 19 D
11 Outside temperature sensor, signal 20 D
2 Pressure regulator valve, actuation 7 C
3 Fuel injectors, actuation 3 E
4 Quantity control valve, actuation 6 C
5 Rail pressure sensor, signal 5 E
6 Fuel temperature sensor, signal 8 C
7 Condensation sensor for fuel filter with heating element, signal 9 G
8 Instrument cluster display, signal 4 J
9 Crash, signal 7 H
A1 Instrument cluster 4 K
B14 Ambient temperature display temperature sensor 19 E
B4/6 Rail pressure sensor 4 D
B50 Fuel temperature sensor 8 B
B76/1 Condensation sensor for fuel filter with heating element 11 J
CAN B Interior CAN 14 D
CAN B Interior CAN 16 F
CAN B Interior CAN 16 D
CAN C Engine compartment CAN 3 J
CAN C Engine compartment CAN 7 J
CAN C Engine compartment CAN 11 F
Code 581 Comfort automatic air conditioning 18 A
F4kO Fuel pump relay module 11 B
M3 Right fuel pump 13 B
N10 Front SAM control unit 18 J
N10/8 Rear SAM control module 11 C
N2/7 Restraint systems control module 7 K
N22 AAC pushbutton control module 19 A
N22/7 Comfort AAC pushbutton control module 19 B
N3/9 CDI control module 7 D
N93 Central gateway control module 15 F
R54 Fuel preheating system heating element 11 K
U206 Not valid for countries with poor quality fuel 11 J
U42 Valid for countries with poor quality fuel 11 H
Y74 Pressure regulator valve 7 C
Y76y1 Fuel injector (1st cylinder) 2 E
Y76y2 Fuel injector (2nd cylinder) 2 E
Y76y3 Fuel injector (3rd cylinder) 2 E
Y76y4 Fuel injector (4th cylinder) 2 F
Y76y5 Fuel injector cylinder 5 2 F
Y76y6 Fuel injector cylinder 6 2 F
Y94 Volume control valve 5 C

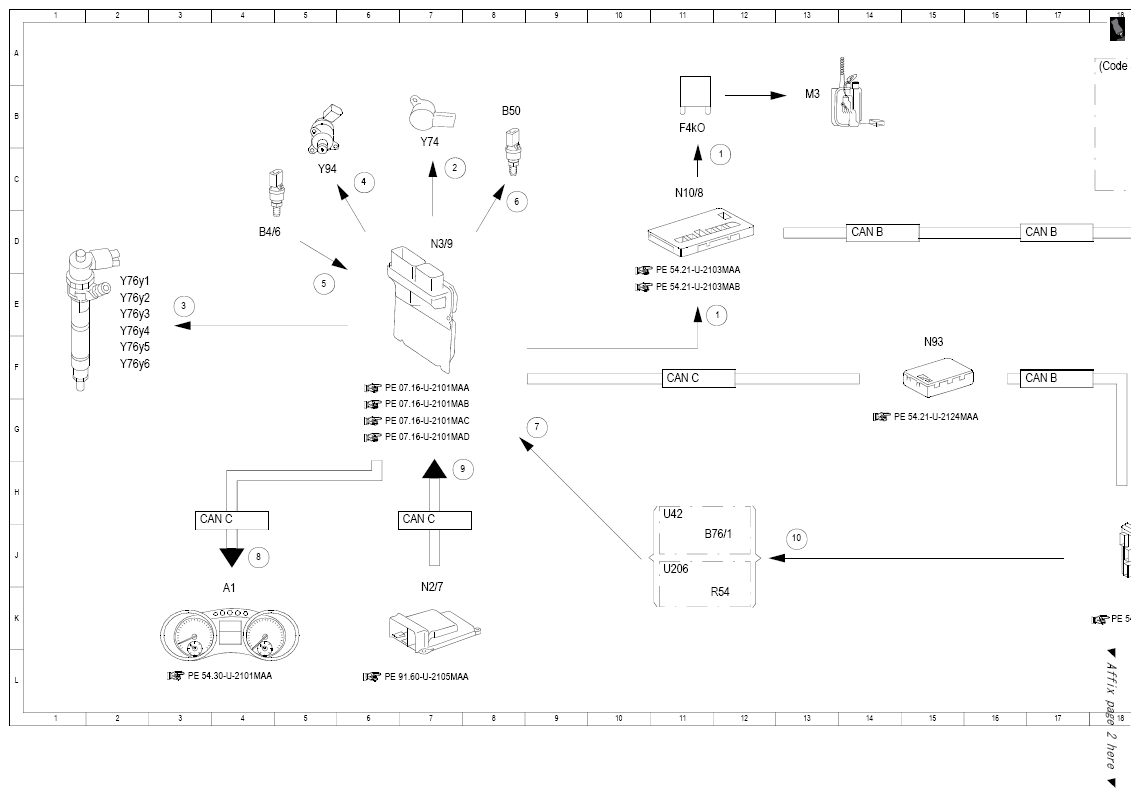

Fig 1: Fuel Supply Electrical Function Diagram (1 Of 2)
G10120208Courtesy of MERCEDES-BENZ USA

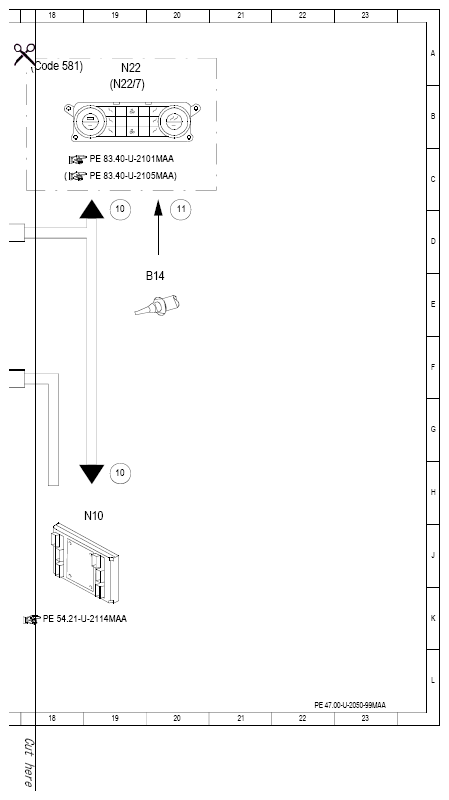

Fig 2: Fuel Supply Electrical Function Diagram (2 Of 2)
G10120209Courtesy of MERCEDES-BENZ USA
