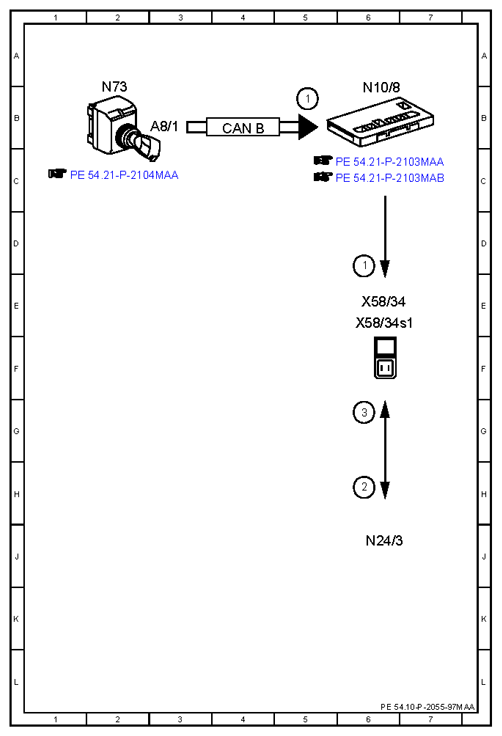

Electrical function schematic for DC/AC converter - PE54.10-P-2055-97MAA
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R, status | 5B |
| 1 | Circuit 15R, status | 6D |
| 2 | DC/AC converter control unit, actuation | 6H |
| 3 | 115 V socket, actuation | 6G |
| A8/1 | Transmitter key | 3B |
| CAN B | Interior CAN | 4B |
| N10/8 | Rear SAM control unit | 6B |
| N24/3 | DC/AC converter control unit (115V socket) | 6J |
| N73 | EIS [EZS] control unit | 2B |
| X58/34 | 115 V socket | 6E |
| X58/34s1 | Socket microswitch | 6E |
