Remove/install ornamental frame on side windows - AR67.30-P-4020GY

MODEL 164.8

Shown on model 164.8 with electric glass tilting/sliding roof, code 414

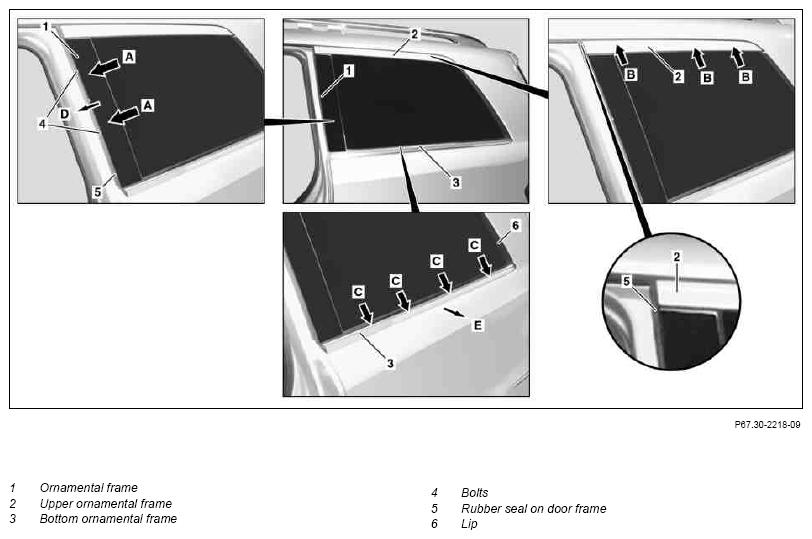

Fig 1: Identifying Side Windows Ornamental Frame Remove/Install Components - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Front ornamental frame
1	Remove rubber seal on door frame (5) from front ornamental frame (1)	Carefully loosen rubber seal on door frame (5) from ornamental frame to prevent damage. Glue rubber seal into door frame (5).
		MB special adhesive	*BR00.45-Z-1002-02A
2	Remove screws (4)
3	Unclip front ornamental frame (1) from clips (arrows A, arrow D).	Long wedge	Fig 2
4	Install in the reverse order
	Upper ornamental frame
5	Remove rubber seal on door frame (5) from upper ornamental frame (2).	Carefully loosen rubber seal on door frame (5) from ornamental frame to prevent damage. Glue rubber seal into door frame (5).
		MB special adhesive	*BR00.45-Z-1002-02A
6	Unclip upper ornamental frame (2) from clips (arrows B) toward outside	Carefully pry out upper ornamental frame (2) to prevent ornamental frame from bending.
		Long wedge	Fig 2
7	Install in the reverse order	Ensure that upper window rubber is seated correctly.
	Bottom ornamental frame
8	Carefully unclip lower ornamental frame (3) from clips (arrows C) toward outside (arrow E).	Long wedge	Fig 2
9	Install in the reverse order	Ensure that lip (6) is seated correctly above lower ornamental frame (3).

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
