Remove, install outer spare tire holder paneling - AR88.30-P-1007GZ

MODEL 164 with CODE (849) Spare wheel holder/spare wheel

Fig 1: Identifying Outer Spare Tire Holder Paneling Remove/Install Components (1 Of 6)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Outer Spare Tire Holder Paneling Remove/Install Components (2 Of 6)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Outer Spare Tire Holder Paneling Remove/Install Components (3 Of 6)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Outer Spare Tire Holder Paneling Remove/Install Components (4 Of 6)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Outer Spare Tire Holder Paneling Remove/Install Components (5 Of 6)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Outer Spare Tire Holder Paneling Remove/Install Components (6 Of 6)

Courtesy of MERCEDES-BENZ USA

	Remove/install

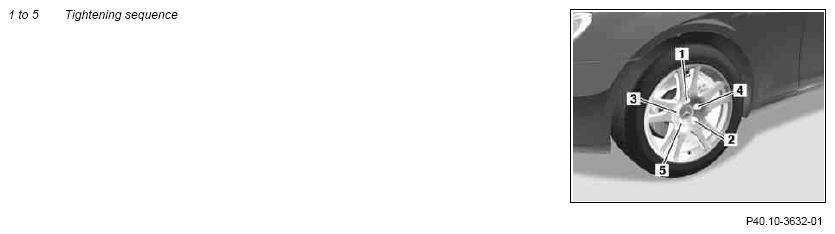

1	Remove wheel bolts and remove wheels	Observe tightening sequence (1 to 5).
			*BA40.10-P-1001-01J
2	Open outer spare tire holder

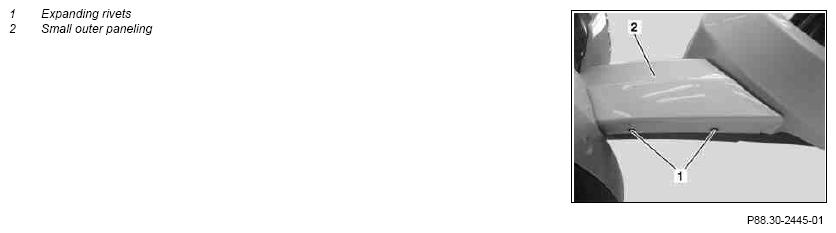

3	Remove expansion rivets (1)
4	Slightly close outer spare tire holder	To allow later removal of small outer paneling (2)
5	Unclip small outer paneling (2) upward

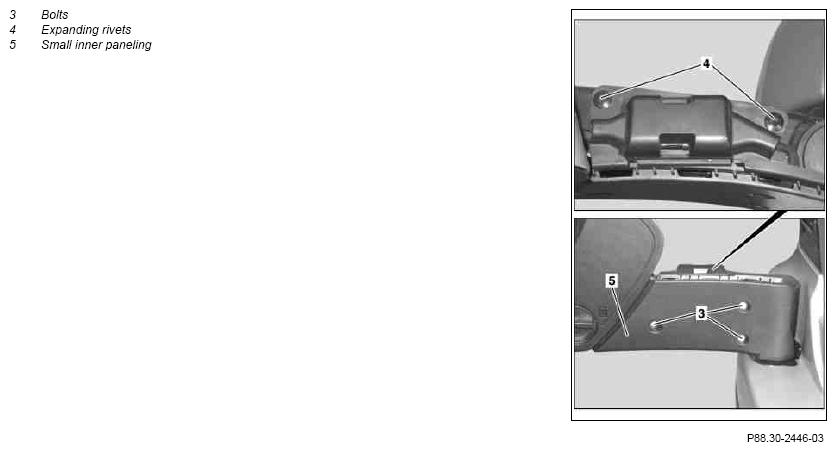

6	Remove bolt (3)
7	Remove expansion rivets (4)
8	Unclip small inner paneling (5)

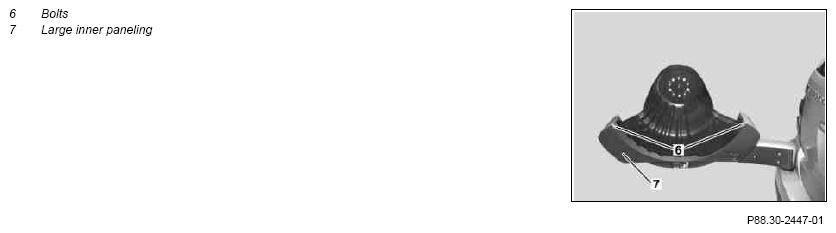

9	Remove bolts (6)
10	Unclip large inner paneling (7)

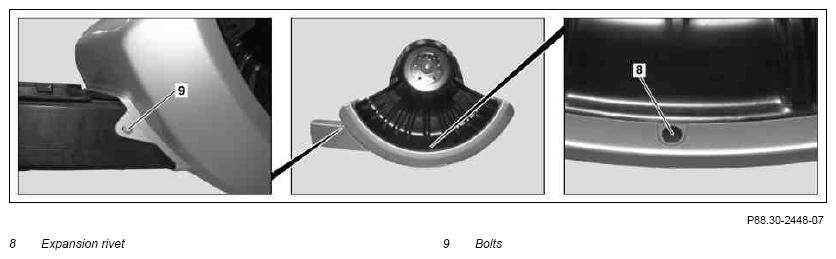

11	Remove expansion rivet (8)
12	Remove bolt (9)

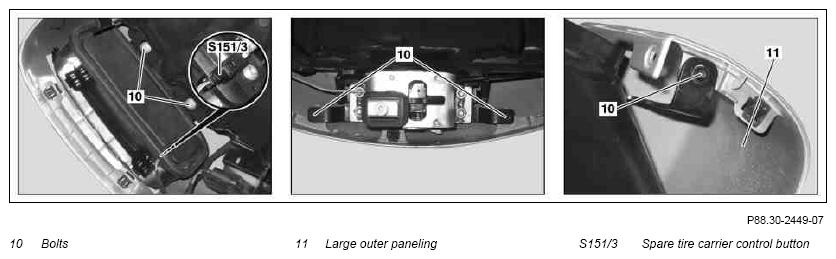

13	Remove bolt (10)
14	Electrically disconnect spare tire carrier control button (S151/3)
15	Remove large outer paneling (11)
16	Install in the reverse order

WHEELS

Number	Designation		Model 164
BA40.10-P-1001-01J	Wheel bolt	Nm	150
