| F4 |
Load compartment fuse and relay box |
8 L |
| F4 |
Load compartment fuse and relay box |
29 L |
| F4f70 |
Fuse 70 |
6 J |
| F4f70 |
Fuse 70 |
27 J |
| F4f71 |
Fuse 71 |
8 J |
| F4f71 |
Fuse 71 |
28 J |

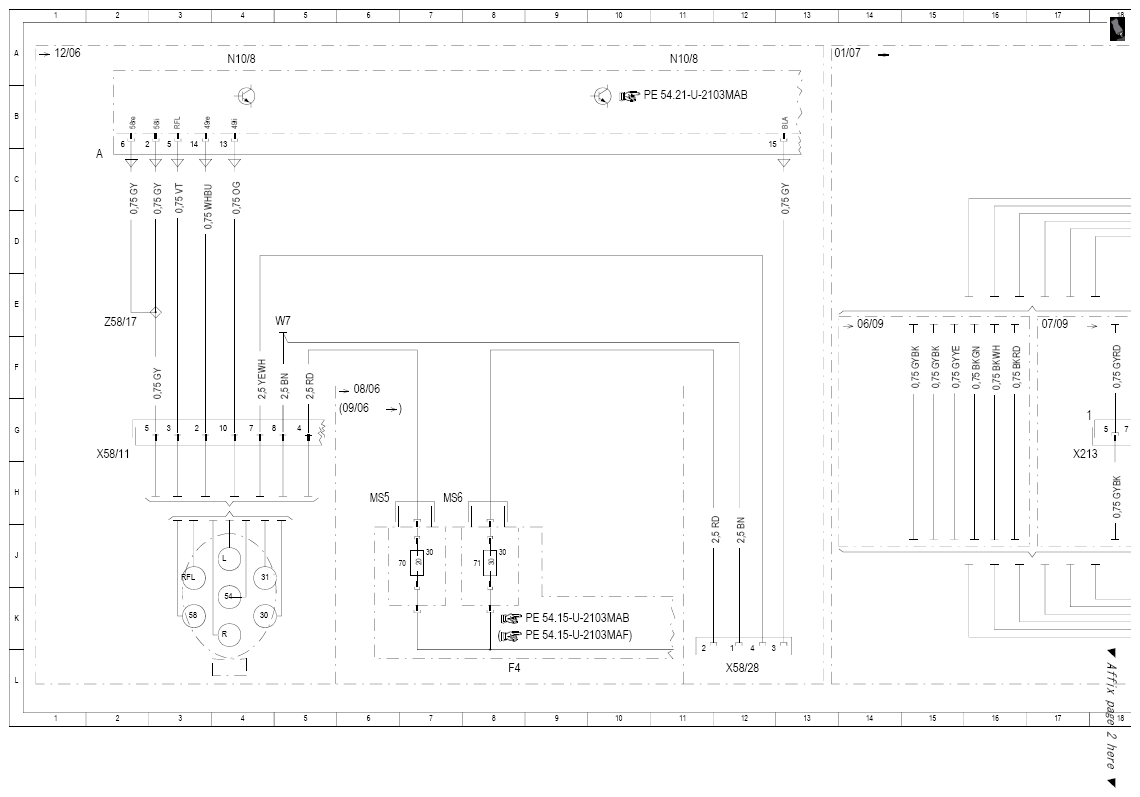

| N10/8 |
Rear SAM control unit |
4 A |
| N10/8 |
Rear SAM control unit |
11 A |
| N10/8 |
Rear SAM control unit |
28 A |

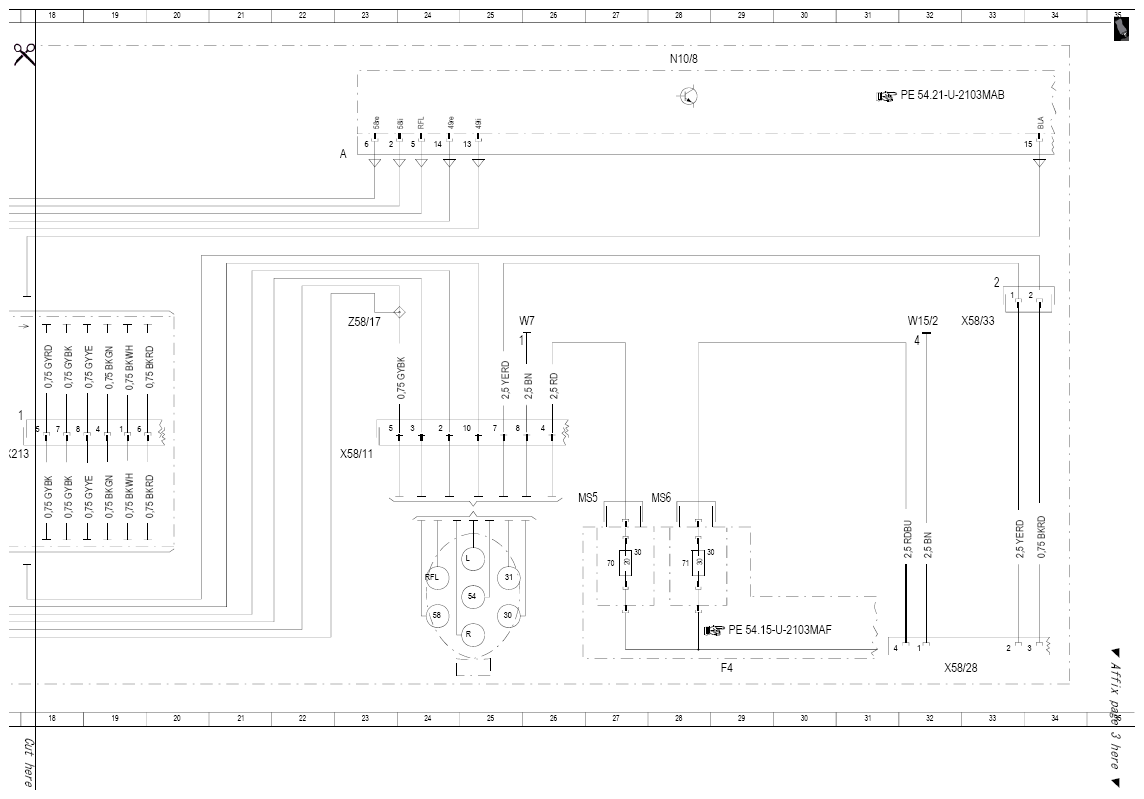

| W15/2 |
Ground (left footwell) |
32 E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
5 E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
25 E |
| X213 |
Rear SAM connecting point |
17 H |
| X58/11 |
Trailer hitch socket (7-pin) |
2 H |
| X58/11 |
Trailer hitch socket (7-pin) |
23 H |
| X58/28 |
Electric brake control separation point |
12 L |
| X58/28 |
Electric brake control separation point |
32 L |
| X58/33 |
Interior compartment/trailer hitch separation point |
32 E |
| Z58/17 |
Circuit 58 trailer socket solder point |
2 E |
| Z58/17 |
Circuit 58 trailer socket solder point |
23 E |
