Remove/install bottom parts of soundproofing - AR94.30-P-5300GZ

MODEL 164 with ENGINE 629, 642

Shown on model 164.1

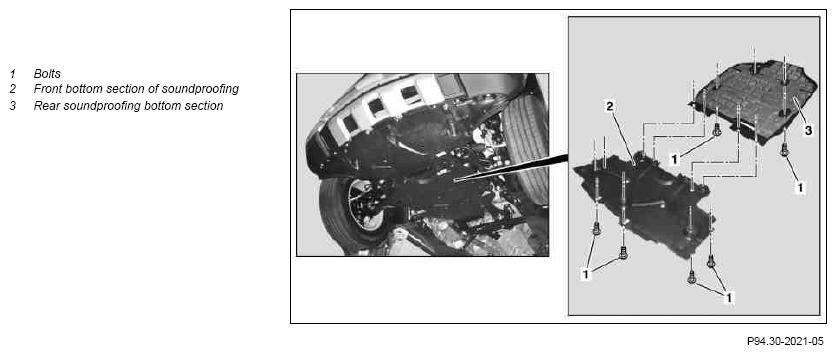

Fig 1: Identifying Bottom Parts Of Soundproofing Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Lift vehicle with two-post lift		AR00.60-P-1000GZ
		Two-post lifting platform 3.0-3.5 t electromechanical
2	Remove bolt (1)	15 bolts (1).
3.1	Remove front soundproofing bottom section (2) and rear soundproofing bottom section (3)	Model 164 without code (430) Offroad package The sections can also be removed separately.
3.2	Remove underride guard plate	Model 164 with code (430) Offroad package
			AR88.30-P-0010GZ
4	Install in the reverse order
