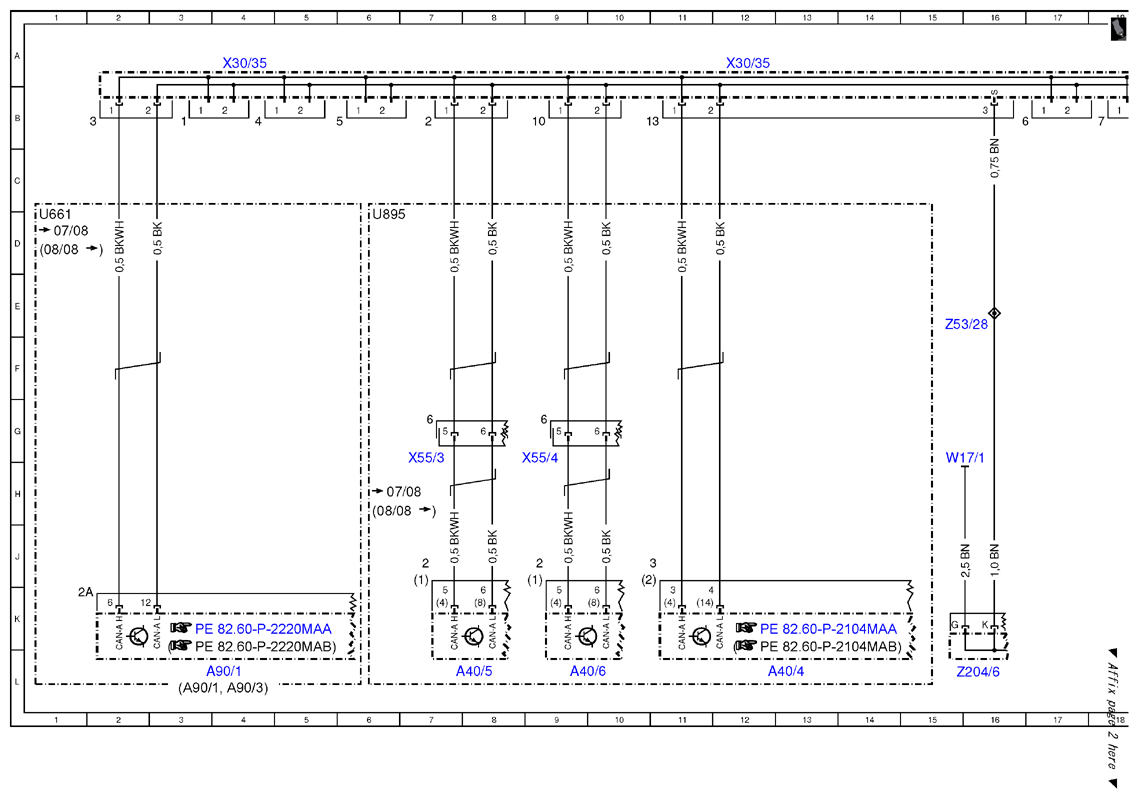

| A0 |
Color code key |
K23 |
| A40/4 |
DVD player |
13L |
| A40/5 |
Left rear display |
8L |
| A40/6 |
Right rear display |
9L |
| A90/1 |
TV combination tuner (analog/digital) |
4L |
| A90/1 |
TV combination tuner (analog/digital) |
4K |
| A90/3 |
TV digital tuner |
4K |
| U661 |
Valid for TV and video in rear |
1D |
| U895 |
Valid for rear audio |
6D |
| W17/1 |
Ground (left rear seat) |
15H |

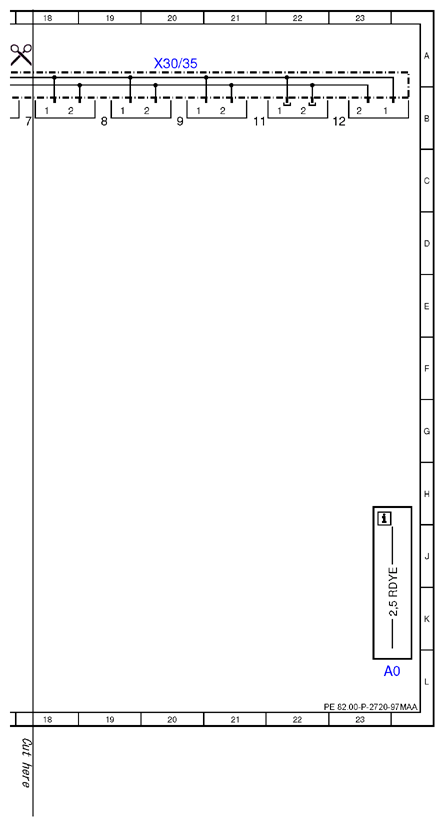

| X30/35 |
Telematics CAN voltage distributor connector |
12A |
| X30/35 |
Telematics CAN voltage distributor connector |
4A |
| X30/35 |
Telematics CAN voltage distributor connector |
20A |
| X55/3 |
Left front seat contacting strip |
7H |
| X55/4 |
Right front seat contacting strip |
9H |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
16L |
| Z53/28 |
Telematics circuit 31 interior solder point 2 |
16E |
