Retrofit iPhone kit - AZ82.70-P-0013GZA
MODEL 164 (except 164.195) with CODE (518) Media interface
| Remove | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||

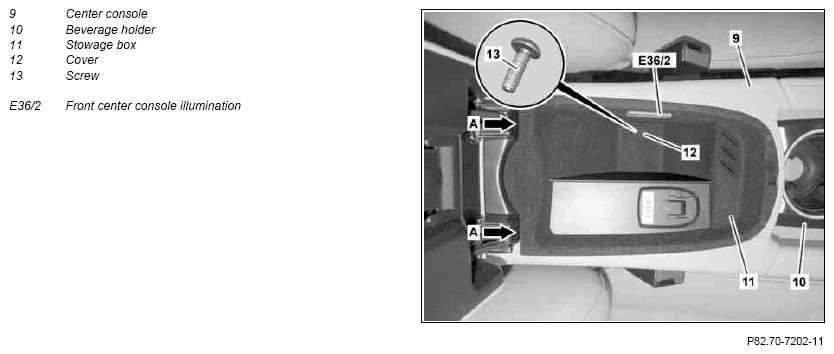

| 2 | Remove front beverage holder (10) | AR68.20-P-2240GZ | |
| 3 | Unclip cover (12) from stowage box (11) | ||
| 4 | Remove bolt (13) | ||
| 5 | Unclip front center console illumination (E36/2) from stowage box (11) | ||
| 6 | Disconnect coupling of front center console illumination (E36/2) | ||
| 7 | Remove front center console illumination (E36/2) | ||
| Install | |||
| 8 | Retrofit iPhone kit wiring harness | AZ82.70-P-0013-01GZA | |
| Fig 3 | |||
| 9 | Raise stowage box (11) and lead coupling for front center console illumination (E36/2) through opening in stowage box (11) | ||
| 10 | Connect coupling to front center console illumination (E36/2) | ||
| 11 | Clip front center console illumination (E36/2) into stowage box (11) | ||
| 12 | Lower stowage box (11) | ||
| 13 | Tighten screw (13) | ||
| 14 | Clip cover (12) into stowage box (11) | ||

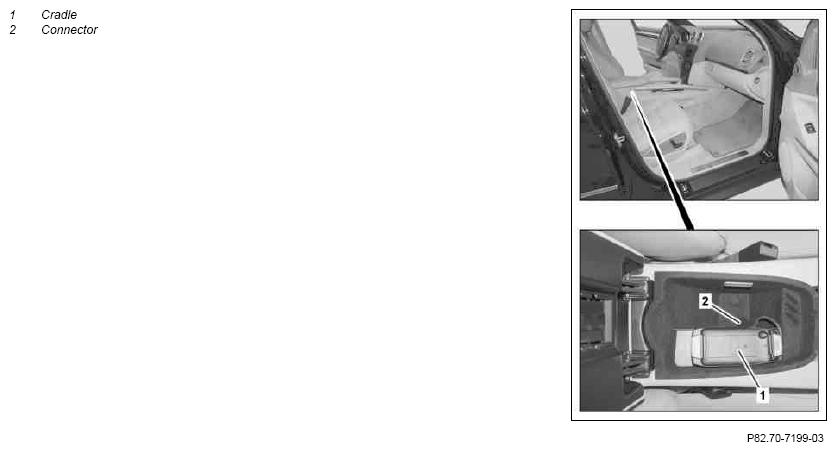

| 15 | Connect connector (2) of cradle (1) to coupling of center console iPhone kit wiring harness | ||
| 16 | Clip bracket (1) into Bluetooth module on telephone console | ||
| 17 | Install front beverage holder | AR68.20-P-2240GZ | |
| Checking | |||
| 18 | Check iPhone kit for proper operation |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| KG98 (see EPC) | Electrical system and function | 1 |
