Removing and installing loudspeaker in instrument panel - AR82.62-P-7833GZ

MODEL 164 with CODE (810) Sound system

Shown on vehicles with Parktronic system (PTS), code 220

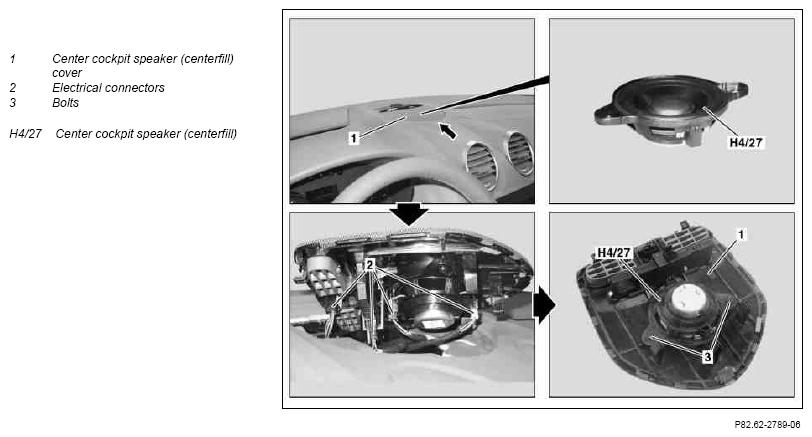

Fig 1: Identifying Loudspeaker Remove/Install Components - Shown On Vehicles With Parktronic System

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Carefully unlatch center cockpit speaker (centerfill) cover (1) at rear edge (arrow) and pull upward out of installation opening	Protect instrument panel from being scratched. Insert center cockpit speaker (centerfill) cover with the two front lugs first, then latch in at the rear at the clamp.
		Long wedge	Figure
3	Separate electrical connectors (2)
4	Undo screws (3) and remove center cockpit speaker (centerfill) (H4/27)
5	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
