Removing and installing headlamp for daytime running light - AR82.10-P-2300GY

MODEL 164.8 with CODE (236) Daytime running lights in LED design

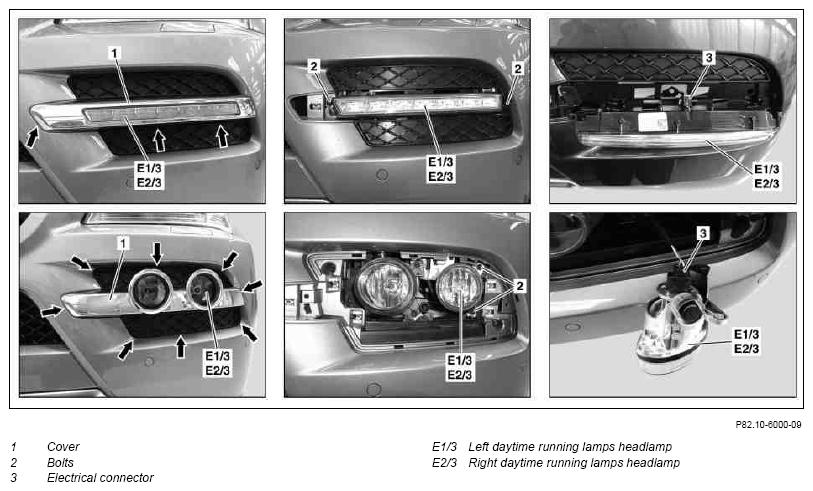

Fig 1: Removing/Installing Headlamp For Daytime Running Light

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (1)	Long wedge	Fig 2
2	Remove bolt (2)
3	Remove daytime running lights headlamps (E1/3, E2/3) and detach electrical connector (3)
4	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
