Remove/install windshield washer system pump - AR82.35-P-6002GZ

MODEL 164

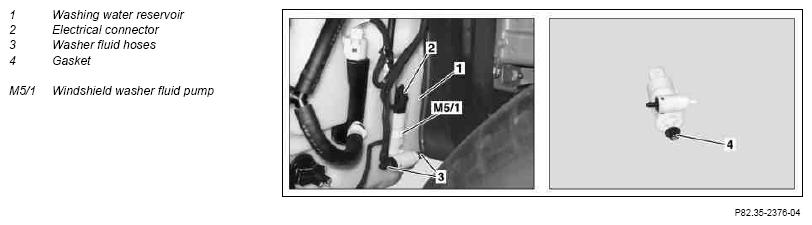

Fig 1: Identifying Windshield Washer System Pump Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front part section of fender liner in front fender		AR88.10-P-1310GZ
2	Remove windshield washer fluid pump (M5/1) up out of the washer fluid reservoir (1) and seal off	Collect washer fluid which flows out.
		Set of plugs	Fig 2
3	Detach washer fluid hoses (3) at windshield washer fluid pump (M5/1)	Check gasket (4), replace if necessary.
4	Disconnect electrical connector (2)
5	Install in the reverse order
6	Top up washer fluid reservoir (1)
	Inspect fluid level of windshield washer system, adjust to correct level		AP82.35-P-8210GZ
7	Carry out function check of the windshield wipers and the windshield washer system	Switch on ignition and check the function of the window washer fluid pump (M5/1) by pressing the combination switch. A sufficient quantity of washer fluid must spray out of the spray nozzles.
