Remove/install vehicle interface (portable CTEL) - AR82.70-P-8920GZ
MODEL 164 with CODE (388) Telephone "Handy", UPCI system

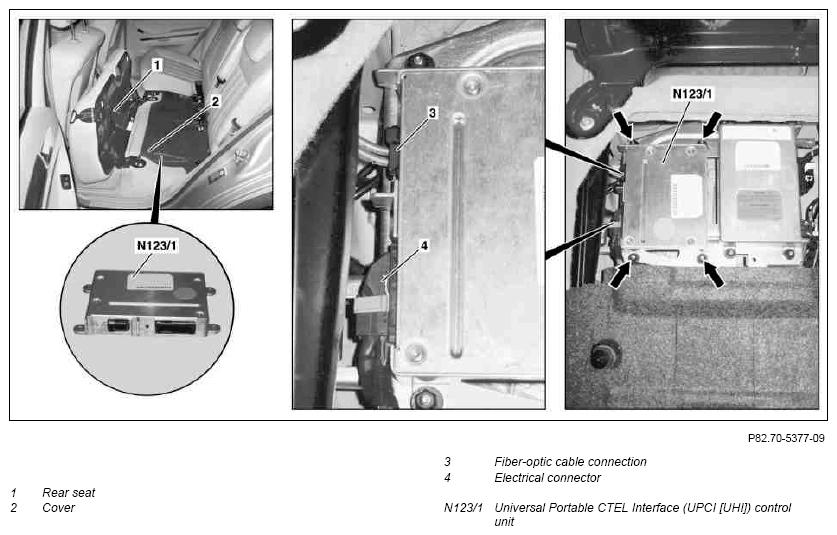

Fig 1: Identifying Vehicle Interface (Portable CTEL) Remove/Install Components - Shown On Model 164.1
Shown on model 164.1
MODIFICATION NOTES
| 26.7.06 | Disconnect/connect ground line for battery and carry out basic programming removed | Steps 2 and 9 |
| Remove/install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Buffer basic data of Universal Portable CTEL Interface (UPCI [UHI]) control unit (N123/1) in STAR DIAGNOSIS diagnosis system | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 2 | Release rear seat (1) and fold forward | ||
| 3 | Raise cover (2) | ||
| 4 | Disconnect and cover fiber optic cable coupling (3) | ||
| Notes on avoiding damage to fiber optic cables during repair work | Model 164, 169.0/3, 211.0/2/6, 221.0/1 245.2, 251 with Media Oriented System Transport (MOST) | AH82.60-P-0001-05AK | |
| 5 | Disconnect electrical connector (4) | ||
| 6 | Remove four nuts (arrows) and remove Universal Portable CTEL Interface (UPCI [UHI]) control unit (N123/1) | ||
| 7 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
