Remove/install stowage tray for portable CTEL (telephone) - AR82.70-P-8921GZ

MODEL 164

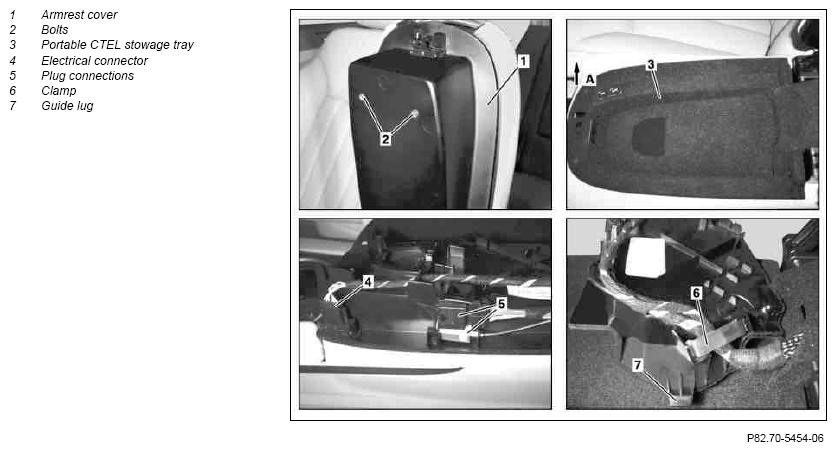

Fig 1: Identifying Portable CTEL (Telephone) Stowage Tray Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unlock armrest cover (1) and set upright
2	Remove bolts (2)
3	Unlock stowage tray and set upright
4	Lift portable CTEL stowage tray (3) (arrow A) and pull forward	Pay attention to installation position of guide tab (7).
5	Turn over portable CTEL stowage tray (3)
6	Disconnect electrical connector (4)
7	Unclip connectors (5)
8	Remove clamp (6)
9	Install in the reverse order
