Remove/install loudspeaker amplifier control unit - AR82.62-P-7720GZ
MODEL 164 with CODE (810) Sound system
MODIFICATION NOTES
| 26.7.06 | Disconnect/connect ground line for battery and carry out basic programming removed | Steps 2 and 18 |
| Remove/install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

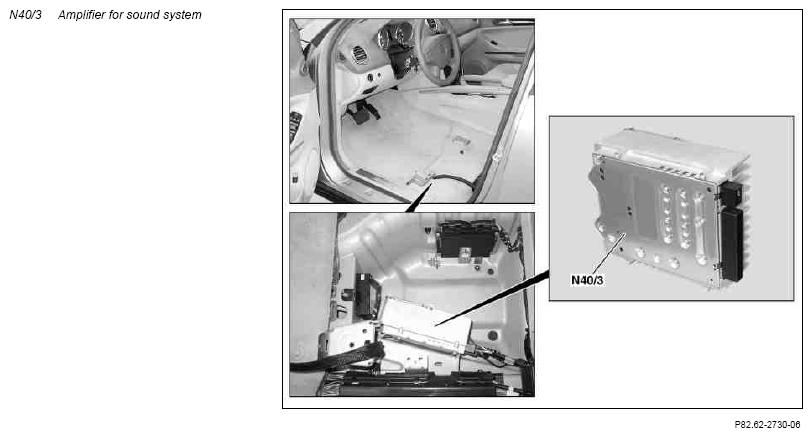

| 1 | Read out coding of amplifier for sound system (N40/3) | Only when replacing amplifier for sound system (N40/3) and when it can still be read out with STAR DIAGNOSIS. | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 2 | Remove left front seat | AR91.10-P-1000GZ | |
| 3 | Remove left front door sill molding | AR68.30-P-4100GZ | |
| 4 | Remove left rear door sill molding | AR68.30-P-4100GZ | |
| 5 | Remove B-pillar paneling at bottom left | AR68.30-P-4700GZ | |

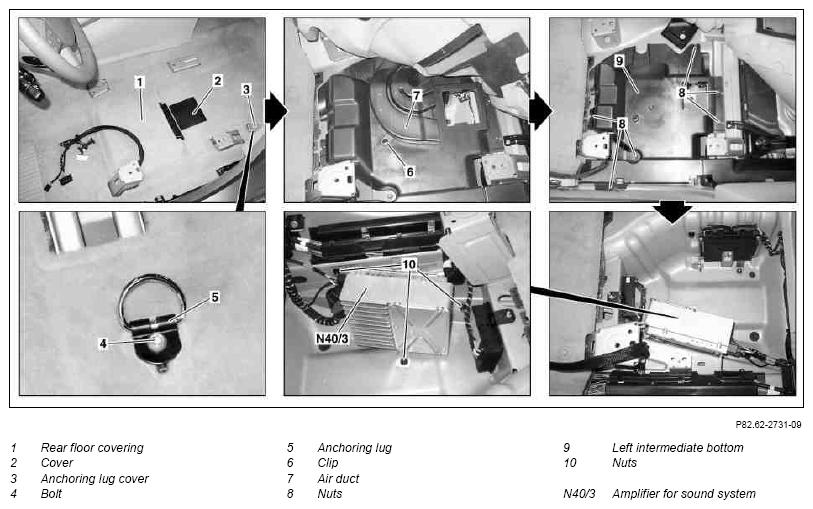

| 6 | Remove cover (2). | ||
| 7 | Remove anchoring lug cover (3) | ||
| 8 | Remove bolt (4) and remove anchoring lug (5) | ||
| *BA68.50-P-1001-03F | |||
| 9 | Fold over left rear floor covering (1) | ||
| 10 | Remove clip (6) and remove air duct (7) | ||
| 11 | Remove nuts (8) and remove left intermediate bottom (9) | ||
| 12 | Disconnect electrical connectors from amplifier for sound system (N40/3) | ||
| 13 | Remove nuts (10) and remove amplifier for sound system (N40/3) together with bracket | ||

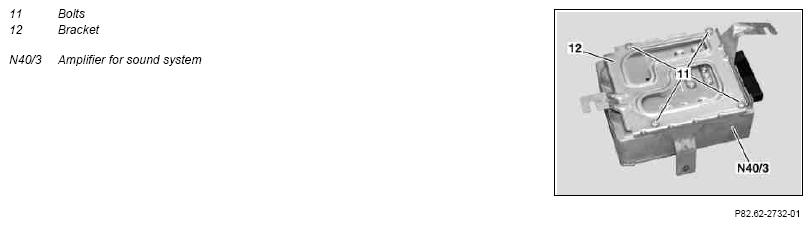

| 14 | Remove bolts (11) and remove bracket (12) from amplifier for sound system (N40/3) | ||
| 15 | Install in the reverse order | ||
| 16 | Code amplifier for sound system (N40/3) | Only when installing new amplifier for sound system (N40/3). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A |
CARGO RETAINERS
| Number | Designation | Model 164.1/8 | |
|---|---|---|---|
| BA68.50-P-1001-03F | Bolt, cargo retainers to body | Nm | 24 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
