Remove/install lamp for vanity mirror - AR82.20-P-5582GZ

MODEL 164 with CODE (543) Sun visors with illuminated mirror Gluhlampenwechsel der Leuchte fur Kosmetikspiegel

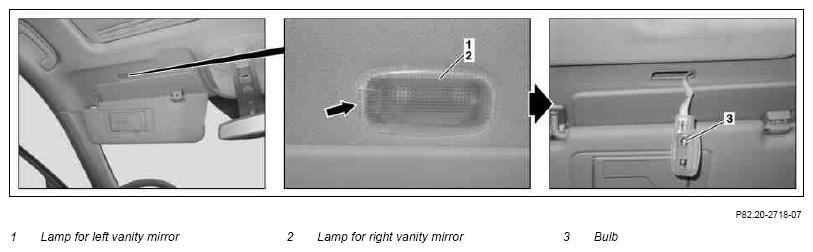

Fig 1: Identifying Vanity Mirror Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Carefully pry off lamp for left vanity mirror (1) or lamp for right vanity mirror (2) from the headliner	For removal, insert a long wedge into the side of the cutout (arrow). The lamp for the left vanity mirror and the lamp for the right vanity mirror cannot be individually exchanged. Only the bulbs can be replaced.
		Long wedge	Figure
2	Remove bulb (3)
3	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
