Remove/install fluid level sensor for the windshield washer system - AR82.35-P-6005GZ

MODEL 164

Shown on vehicle with headlamp cleaning system

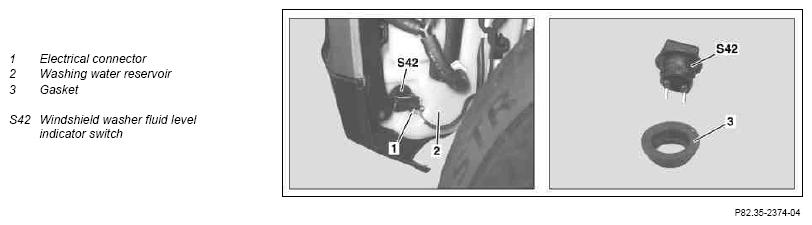

Fig 1: Identifying Windshield Washer System Fluid Level Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front part section of fender liner in front fender		AR88.10-P-1310GZ
2	Disconnect electrical connector (1).
3	Pry windshield washer fluid level indicator switch (S42) out of washer fluid reservoir (2) and close	Collect escaping water. Install a new gasket for the fluid level sensor for the windshield washer system (S42) in the windshield washer fluid reservoir (2).
		Long wedge	Figure
		Set of plugs	Figure
4	Install in the reverse order
5	Fill washer fluid reservoir (2)
	Inspect fluid level of windshield washer system, adjust to correct level		AP82.35-P-8210GZ

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
