Remove/install display in rear - AR82.60-P-7720GZA

MODEL 164 as of model year 2009 with CODE (864) Rear entertainment system

MODEL 251 as of model year 08 with CODE (864) Rear entertainment system

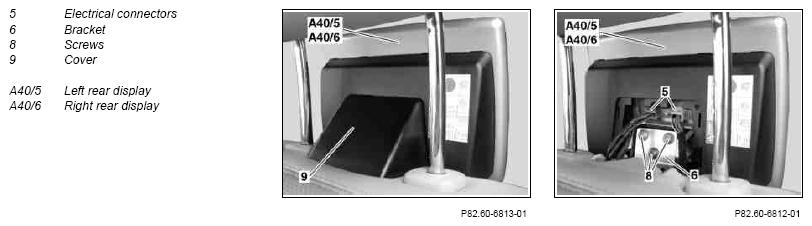

Fig 1: Identifying Rear Display Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Take off cover (9)	Push together somewhat at sides, lift front upwards.
2	Disconnect electrical connectors (5)
3	Remove bolts (8)
4	Lift left, right rear display (A40/5, A40/6) from bracket (6)
5	Install in the reverse order
