Remove/install display in rear - AR82.60-P-7720GZ

MODEL 164 up to Model Year 2008 with CODE (864) Rear entertainment system

MODEL 251 up to Model Year 2007 with CODE (864) Rear entertainment system

Shown on model 164.8

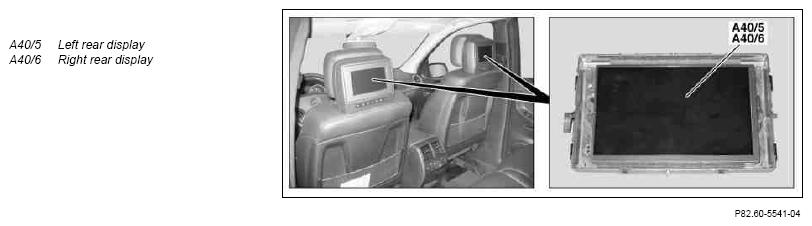

Fig 1: Identifying Rear Display Remove/Install Components - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

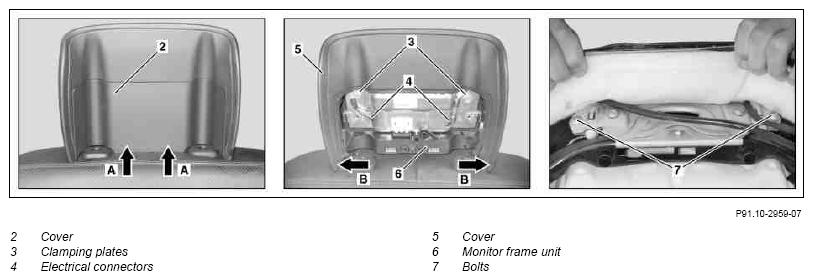

Fig 2: Identifying Rear Display Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

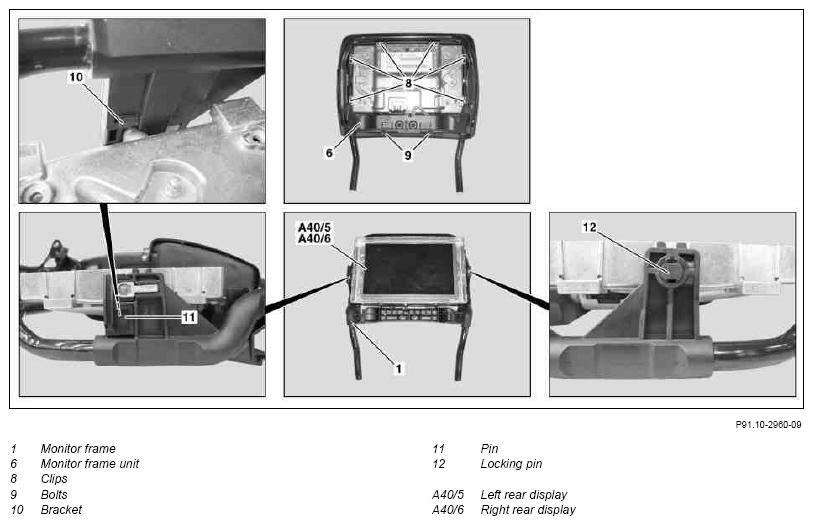

Fig 3: Identifying Rear Display Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Turn key in ignition switch to position "0".	On vehicles with code (889), Keyless-Go: Press Keyless-Go start/stop button repeatedly until ignition is switched off.
2	Remove front seat head restraint	Model 164 with electrically adjustable head restraints.	AR91.16-P-0040GZ
		Model 164 with mechanically adjustable head restraints.	AR91.16-P-0040GZA
		Model 251	AR91.16-P-0040RT
3	Unclip cover (2)	Unclip at the bottom left and right (arrow A).
4	Pull off clamping plates (3)
5	Separate electrical connectors (4)
6	Unclip cover (5)	Unclip at bottom left and right (arrow B).
7	Loosen bolts (7)	Do not unscrew completely.
8	Pull out monitor frame unit (6) in an upwards direction	Pay attention to electrical lines, risk of breakage!
9	Unclip clips (8)
10	Remove bolts (9)
11	Remove bracket (10)
12	Pull out pin (11)
13	Remove locking pin (12)
14	Remove left rear display (A40/5) or right rear display (A40/6) from monitor frame (1)
15	Install in the reverse order
