Remove/install control unit for TELE AID emergency call system - AR82.95-P-0005GZ

MODEL 164 with CODE (359) TELE AID emergency call system

Shown on model 164.1

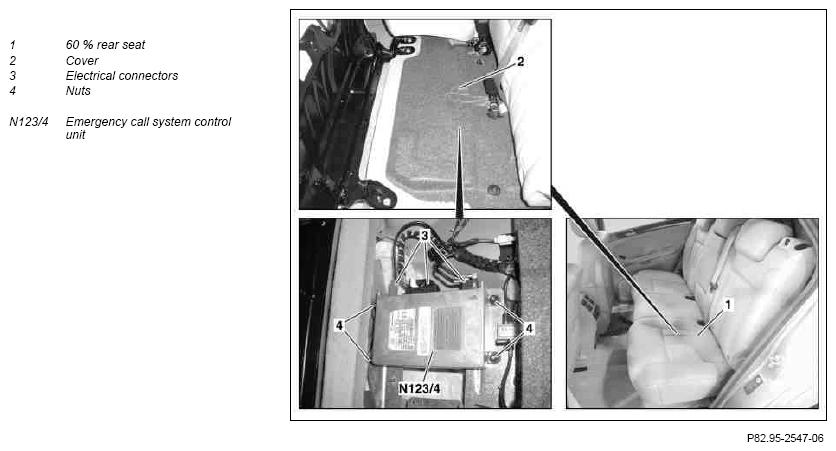

Fig 1: Identifying TELE AID Emergency Call System Control Unit Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

26.7.06

Disconnect/connect ground line for battery and carry out basic programming removed

Steps 1 and 9

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Fold 60 % rear seat (1) forward
2	Lift up cover (2)	On model 164.8 the covers of the rear seat bolts must be removed.
3	Remove emergency call system control unit (N123/4) with bracket	Loosen 3 nuts and swivel around emergency call system control unit (N123/4) with bracket.
4	Separate electrical connectors (3)
5	Unscrew nuts (4)
6	Remove emergency call system control unit (N123/4)
7	Install in the reverse order
