Remove/install center high-mounted stop lamp - AR82.10-P-5375GZ

MODEL 164

Illustrated on model 164.1

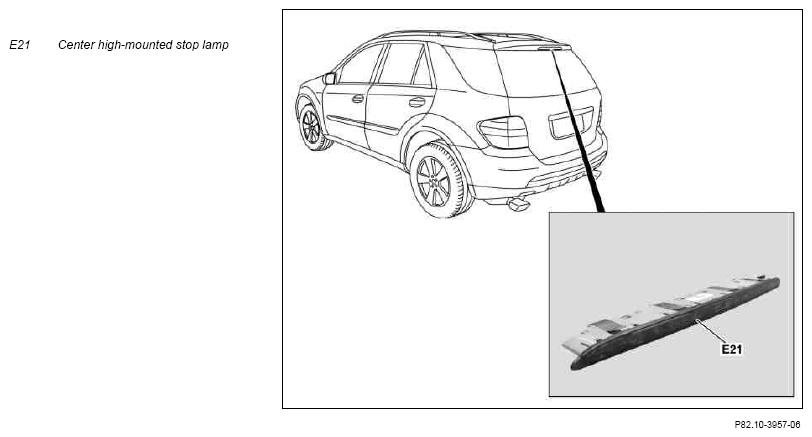

Fig 1: Identifying Center High-Mounted Stop Lamp Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

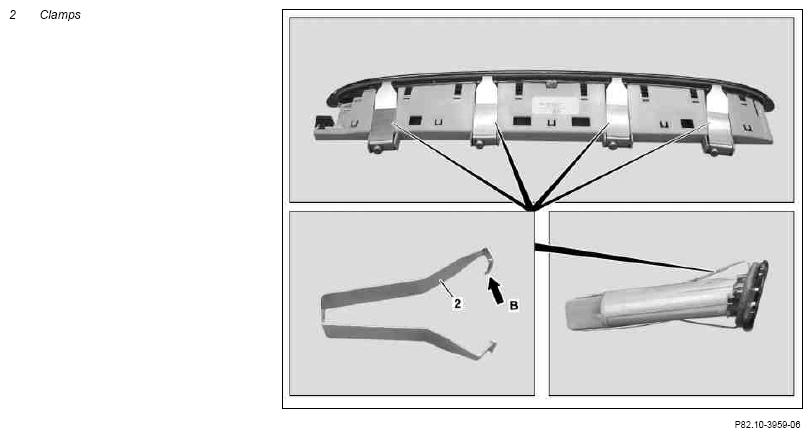

Fig 2: Identifying Center High-Mounted Stop Lamp Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

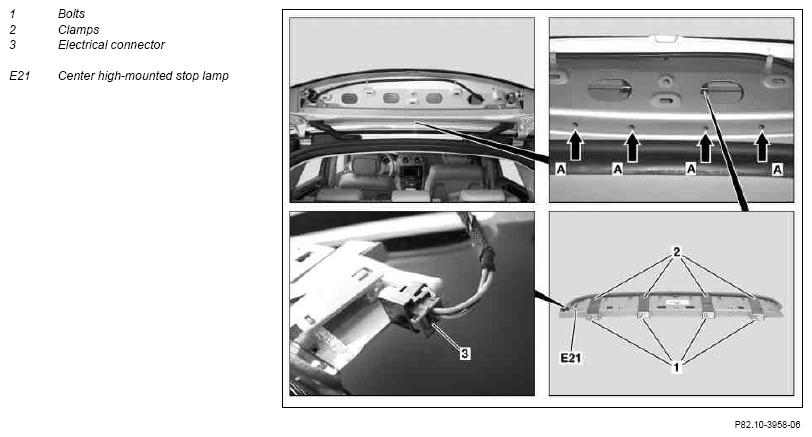

Fig 3: Identifying Center High-Mounted Stop Lamp Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove liner on tailgate	Only top door lining panel.	AR72.20-P-3520GZ
		Mounting wedge	Fig 4
2	Remove bolts (1)	Avoid paint damage! Unscrew screws (1) through the holes (arrows A). Do not allow screws (1) to drop into rear-end door.
3	Pull off clamps (2)	Do not allow to drop in rear-end door.
4	Close rear-end door
5	Pull out center high-mounted stop lamp (E21) until electrical connector (3) is visible	Avoid paint damage!
6	Disconnect electrical connector (3) from center high-mounted stop lamp (E21)
	Install
7.1	Install clamps (2) in center high-mounted stop lamp (E21)	Only when reusing the center high-mounted stop lamp (E21). Ensure that the clamps (2) are seated correctly. Install with longer side (arrow B) of clamps (2) facing upward.
8.1	Screw in bolts (1).	Only when reusing the center high-mounted stop lamp (E21).
9	Connect electrical connector (3).
10	Insert center high-mounted stop lamp (E21)	Center high-mounted stop lamp (E21) must latch in position audibly.
11	Install door liner on rear door	Only top door lining panel.	AR72.20-P-3520GZ

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
