Remove/install additional turn signal lamp - AR82.25-P-4726GZ
MODEL 164 up to Model Year 2008

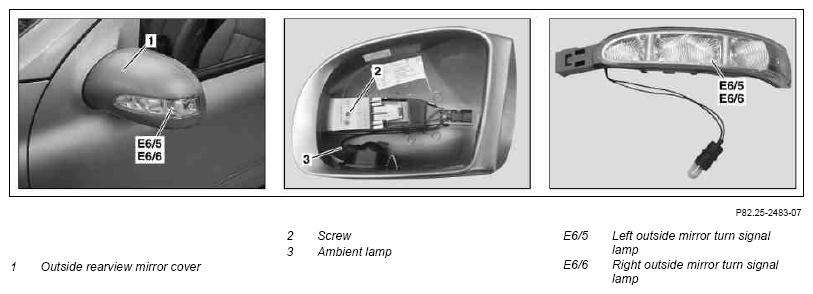

Illustrated on left outside rearview mirror
| Remove/install | |||
| 1 | Remove trim panel of outside mirror (1) | AR88.70-P-9040GZ | |
| 2 | Remove bolt (2). | ||
| 3 | Remove ambient lamp (3) from the outside mirror paneling (1) | ||
| 4 | Remove the left outside mirror turn signal lamp (E6/5) or the right outside mirror turn signal lamp (E6/6) from the outside rearview mirror cover (1) | ||
| 5 | Install in the reverse order | ||
| 6 | Perform a function test |
