Remove/install MB-Info and tele-diagnosis button group - AR82.95-P-3212GZ

MODEL 164 with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (388) Telephone "Handy", UPCI system

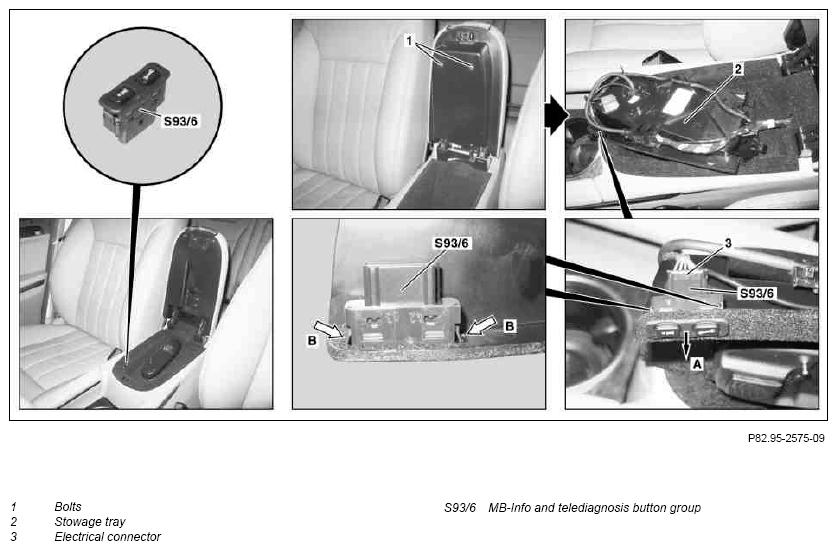

Fig 1: Identifying MB-Info And Tele-diagnosis Button Group Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Illustrated on vehicle with telephone "Handy" UPCI system, code 388 and USA version, code 494

	Remove/install
1	Open upper and lower stowage box in center console
2	Remove bolts (1)
3	Detach stowage shell (2), pull up slightly and turn around	Do not damage wiring harness. Insert stowage shell (2) with its guide lug first.
4	Separate electrical plug connection (3)
5	Remove MB-Info and tele-diagnosis button group (S93/6) from stowage shell (2)	Push the two catch lugs (arrows B) together and push the MB-Info and tele-diagnosis button group (S93/6) out of the stowage shell (2) (arrow A). Pay attention to the correct installation position of the MB-Info and tele-diagnosis button group (S93/6).
6	Install in the reverse order
