Remove/install DVD player - AR82.60-P-7505GZA
MODEL 164 as of model year 2009 with CODE (864) Rear entertainment system
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

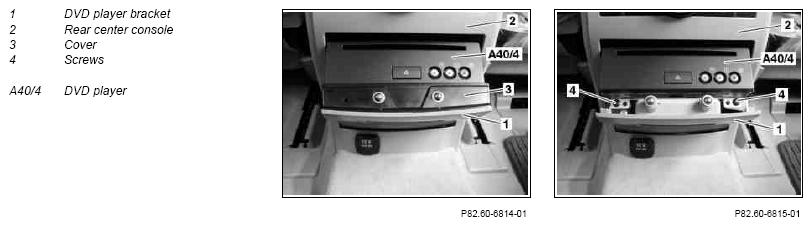

| 1 | Open DVD player bracket (1) in rear center console (2) | ||
| 2 | Take off cover (3) | ||
| 3 | Remove bolts (4) | ||
| 4 | Lift DVD player (A40/4) and detach electrical connections | ||
| 5 | Install in the reverse order |
