Remove/install DVD player - AR82.60-P-7505GZ

MODEL 164.### #A up to 441247 with CODE (864) Rear entertainment system

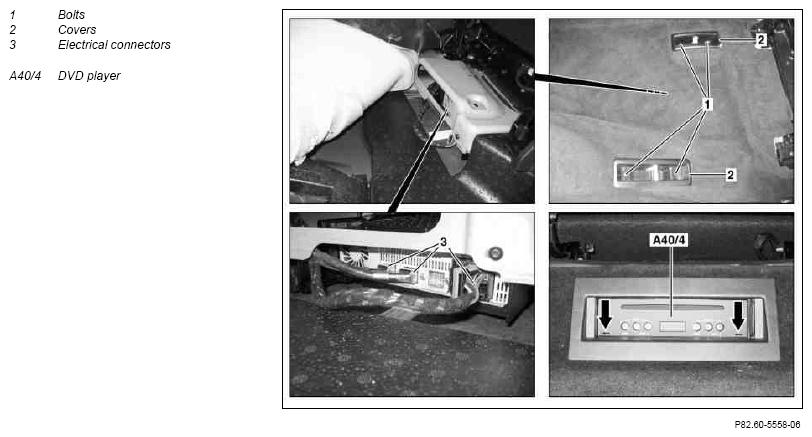

Fig 1: Identifying DVD Player Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove front cover at bottom of rear seat	Remove two bolts, remove cover.
2	Remove bolt (1)
3	Remove covers (2)
4	Fold floor covering to rear
5	Separate electrical connectors (3)
6	Press left and right locking hooks (arrows) on DVD player (A40/4) upward and pull DVD player (A40/4) out from front	Removal fixture	Fig 2
7	Install in the reverse order

Fig 2: Identifying Removal Assembly (000 589 88 63 00)

Courtesy of MERCEDES-BENZ USA
