TELE AID backup antenna, component description - GF82.95-P-4104GZU

MODEL 164 with CODE (494) USA version up to Model Year 2008

Shown for model designation 164.1

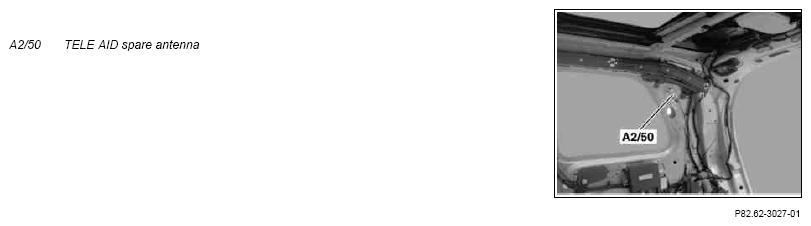

Fig 1: Identifying Tele Aid Backup Antenna Component - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Location

The antenna is installed at the left roof frame strut between the C-pillar and the D-pillar.

Shown for model designation 164.8

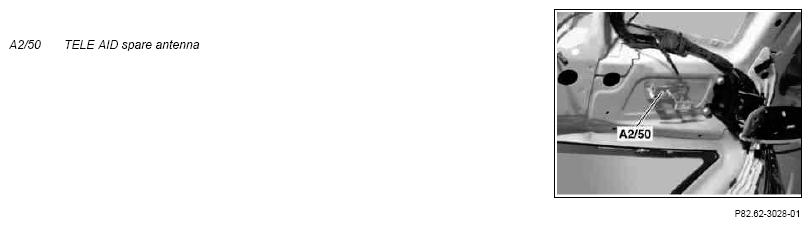

Fig 2: Identifying Tele Aid Backup Antenna Component - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

Location

The antenna is installed at the right D-pillar.

It is connected to the emergency call system control unit (N123/4) by an RF line.

In the event of improper transmission or reception over the TELE AID antenna (A2/93a4), the emergency call system control unit transmits and receives using the TELE AID backup antenna.
