Emergency call system, location of components - GF82.95-P-0004-01GQU

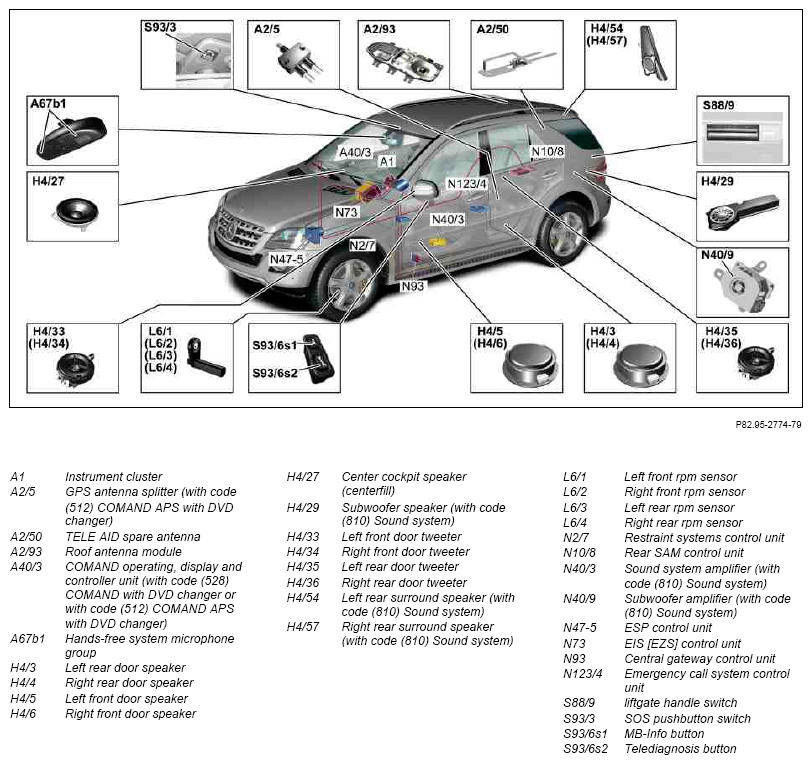

Fig 1: Emergency Call System Components Location - Shown On Model 164.1
G10118327Courtesy of MERCEDES-BENZ USA

Shown on model 164.1

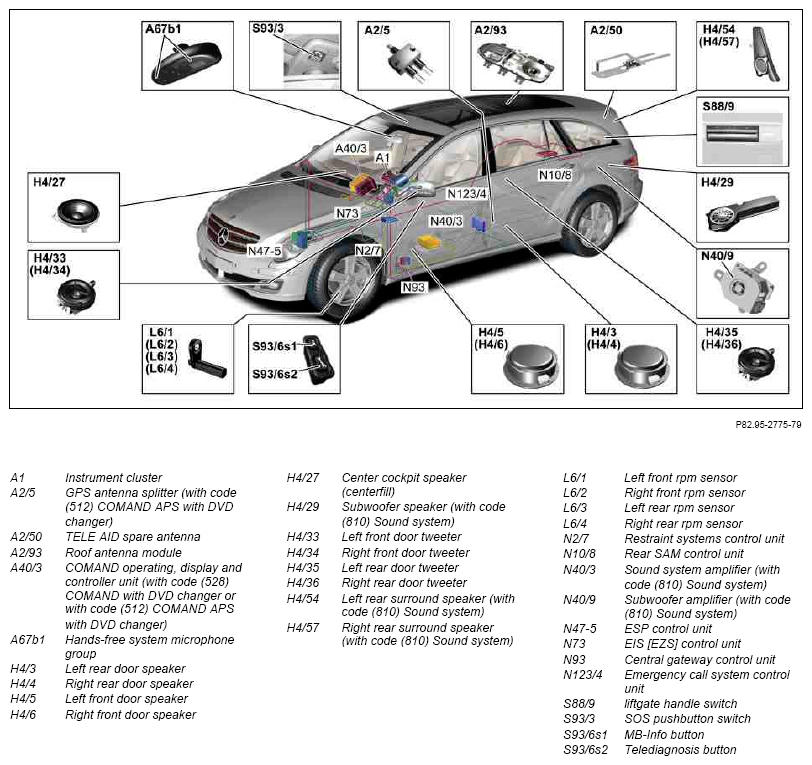

Fig 2: Emergency Call System Components Location - Shown On Model 251
G10118328Courtesy of MERCEDES-BENZ USA

Illustrated on model 251
