Emergency call system block diagram - GF82.95-P-0004-02GQU

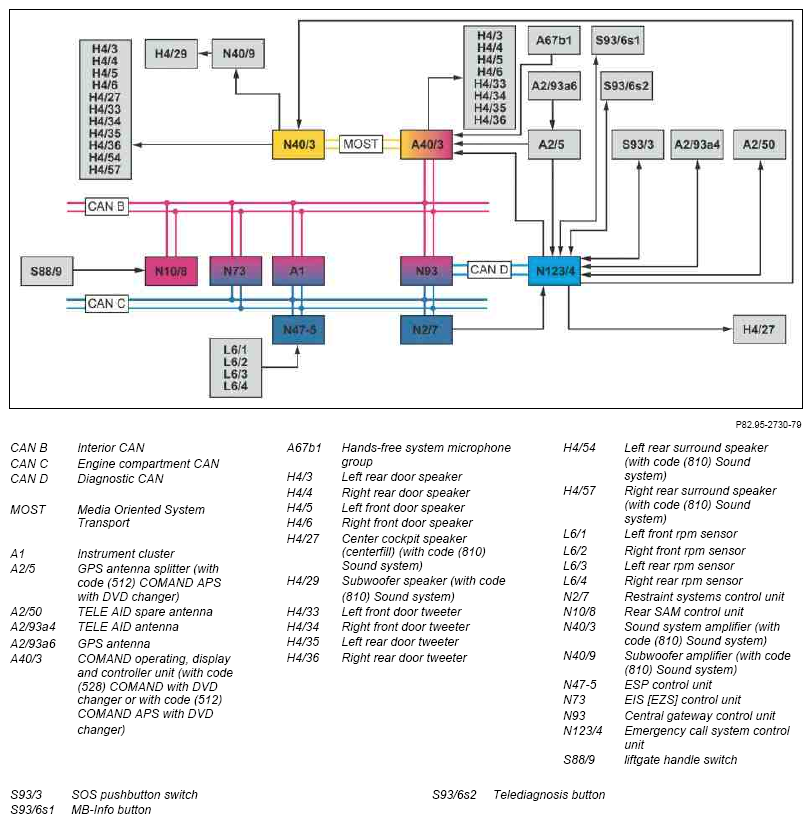

Fig 1: Emergency Call System Block Diagram

G10118329

Courtesy of MERCEDES-BENZ USA
