Basic Knowledge
>>
Wiper system (WSA), location of components
>>
Wiper system (WSA), location of components - GF82.30-P-0003-01GV
Wiper system (WSA), location of components - GF82.30-P-0003-01GV

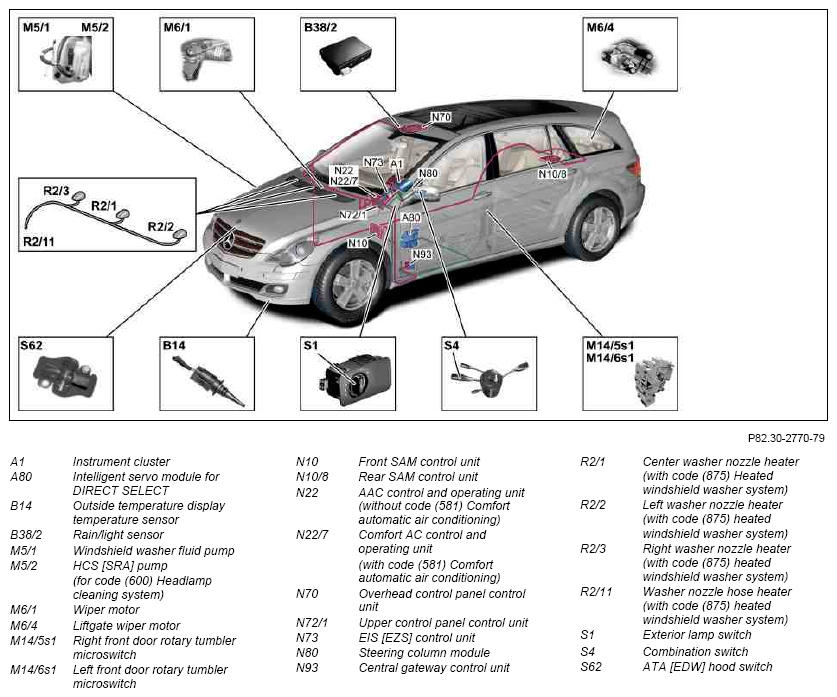

Fig 1: Wiper System Components Location
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
