Wiper system (WSA) block diagram - GF82.30-P-0003-04GZ

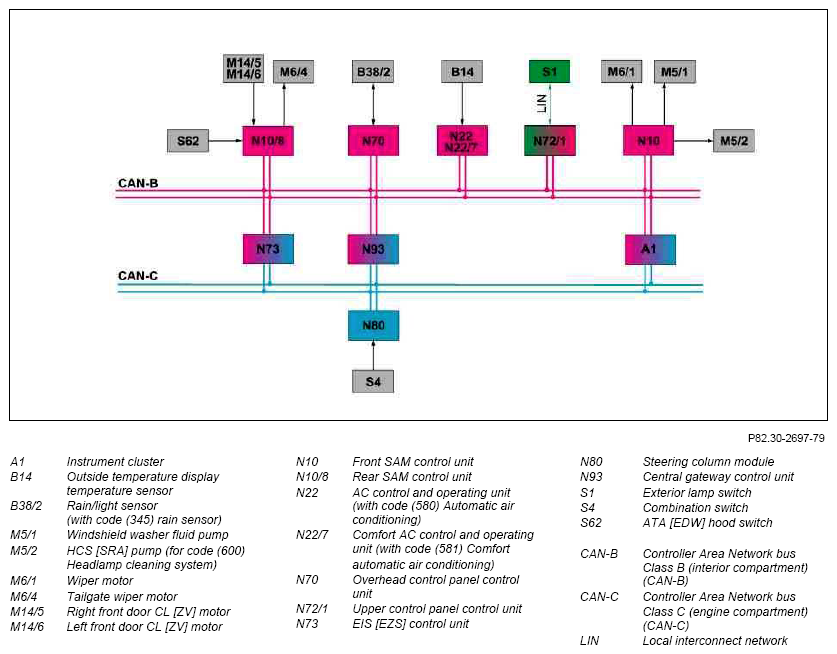

Fig 1: Wiper System Block Diagram

G10118098

Courtesy of MERCEDES-BENZ USA
