Windshield washer fluid pump, component description - GF82.35-P-5000GZ
MODEL 164 up to Model Year 2008

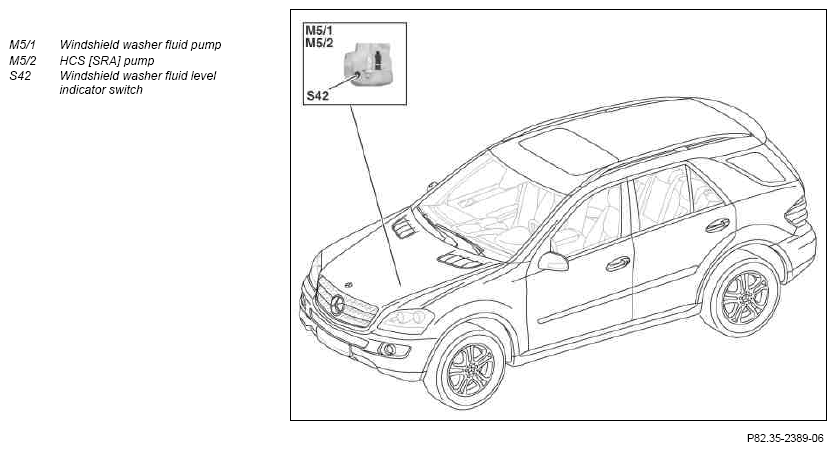

Shown on model 164.1
Location
The windshield washer fluid and HCS pumps are located in the washer fluid reservoir on the left front wheelhouse.
Task
The windshield washer fluid pumps deliver the window washer fluid to the spray nozzles of the front and rear windows.
The HCS pump delivers the window washer fluid to the spray nozzles of the headlamp cleaning system.
