Washer nozzles/washer nozzle hose heater, function - GF82.35-P-3003GZ
MODEL 164 up to Model Year 2008
Function
The washer nozzle heater is switched on automatically if:
- Circuit 61 "ON" (engine running stably) and
- Circuit 15X "ON" and
- an outside temperature of less than 5 °C is detected.
Switch off is accomplished automatically when:
- Circuit 61 "OFF" (engine off) or
- Circuit 15X "OFF" (engine off) or
- an outside temperature of greater than 8 °C is detected.

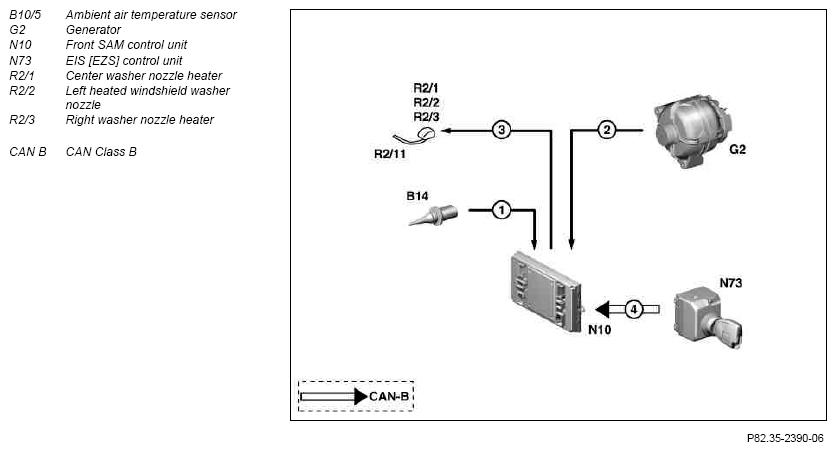

Actuation of heating elements
The washer nozzle heater is actuated by the front SAM control unit.
| Electronic ignition/starter switch control unit (EIS) component description | GF80.57-P-6000GZ | ||
| Front SAM control unit, component description | GF54.21-P-7010GZ | ||
| Outside air temperature sensor component description | GF83.57-P-4000GZ |
