Audio system, block diagram - GF82.60-P-0004-02GQ

MODEL 164, 251 as of model year 2009 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer)

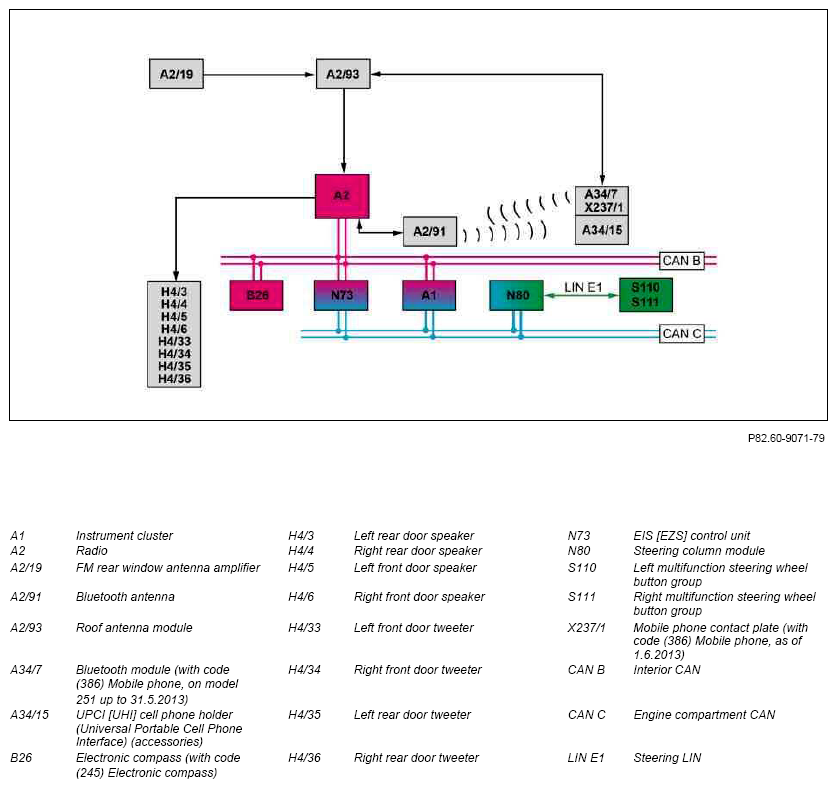

Fig 1: Audio System Block Diagram

Courtesy of MERCEDES-BENZ USA
