Voice control system (VCS) function diagram - GF82.70-P-0002-02GZ

Block diagram

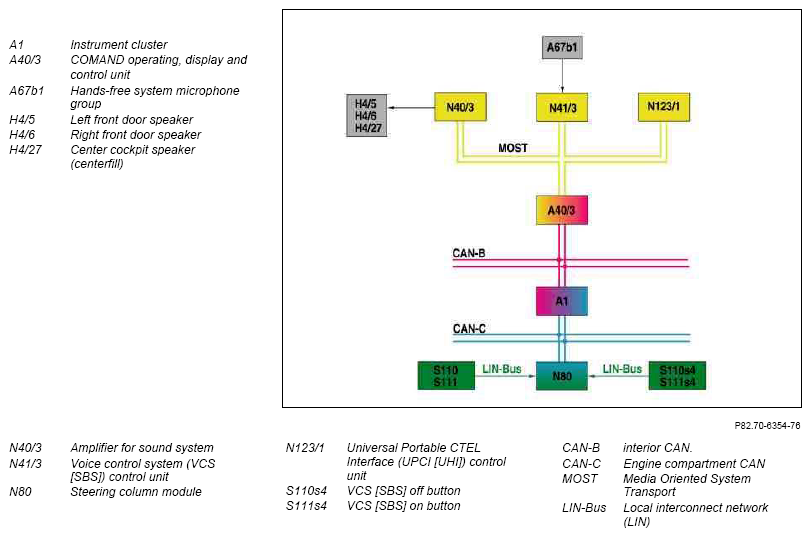

Fig 1: Voice Control Block Diagram

G10118217

Courtesy of MERCEDES-BENZ USA
